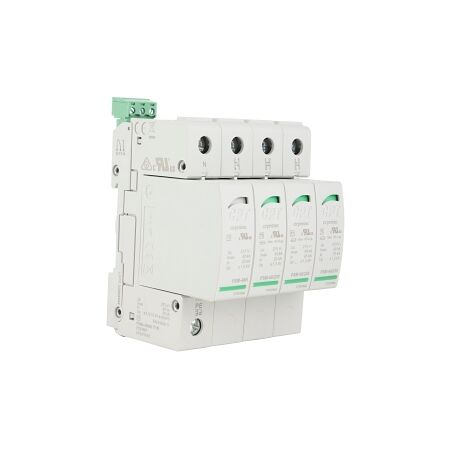

Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N and N-PE Imax 40kA 400VAC

Surge Protection Device Type 2 | 3 Phase 40kA | 400VAC | DIN Rail by NHP

BRAND: NHP

SKU: CPTPSM440400IR

$446.90 List price: $593.50

+ −

30 Days Return Delivery Options

Surge protection device with 40kA discharge current and 400VAC nominal voltage—ideal for industrial, commercial, and residential applications. Built for enhanced safety, with DIN rail mounting for easy installation.

Description
Attachments

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N and N-PE Imax 40kA 400VAC

Brand: NHP

SKU: CPTPSM440400IR

Alternatively Known As: Surge Protection Device, Surge Suppressor, Voltage Surge Protector

Technical Specifications

Max Discharge Surge Current (8/20): 40 kA
Protection Class: II
Nominal Voltage AC: 400 V
Max Continuous Voltage AC: 320 V
Voltage Protection Level: 1.4 kV
Mounting Method: DIN rail (top hat rail) 35 mm
Construction Size: 4 modular spacing
Degree of Protection: IP20
Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
Dimensions (H x L x W): 90mm x 100mm x 70mm
Weight: 1.0 kg

Key Features

Surge protection class II for enhanced safety.
Max discharge surge current of 40 kA.
Nominal voltage of 400 V for reliable performance.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Protecting machinery and equipment from voltage surges
Commercial: Safeguarding electrical systems in office buildings
Residential: Ensuring home electrical systems are protected from surges

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Protects electrical systems, reducing waste from damaged equipment.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.

CPTPSM440400IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSM440400IR-AU-Surge-Protection-Device-Datasheet.pdf, 262 Kb) [Download]
