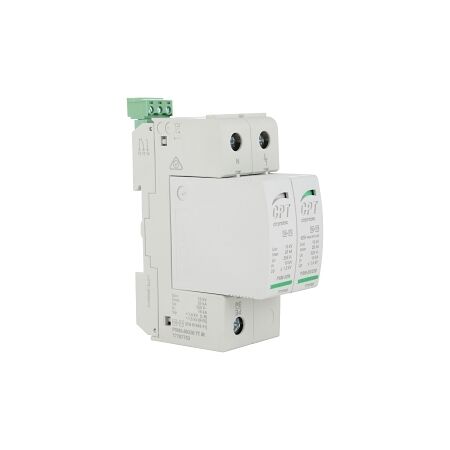

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 1 Phase L-N and N-PE Imax 40kA 240VAC
Brand: NHP
SKU: CPTPSM240230IR
Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector
- Max Discharge Surge Current (8/20): 40 kA
- Protection Class: II
- Nominal Voltage AC: 240 V
- Max Continuous Voltage AC: 255 V
- Voltage Protection Level: 1.4 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 2 modular spacing
- Degree of Protection: IP20
- Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
- Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
- Dimensions (H x L x W): 90mm x 70mm x 36mm
- Weight: 1.0 kg
- Surge protection device with a maximum discharge surge current of 40 kA.
- Protection class II for enhanced safety.
- Designed for 240 V nominal voltage with a maximum continuous voltage of 255 V.
- IP20 rated for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Manufacturing facilities and equipment
- Complies with AS/NZS 60950 for safety and performance standards.
- Protects electrical systems from surges, reducing waste and extending equipment lifespan.
2 years warranty against manufacturing defects.
The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
