Surge Protection Module N-PE | 40kA Imax | 1.5kV Voltage Level | DIN Rail by NHP
Surge protection module with 40kA max discharge and 1.5kV voltage level—ideal for residential and commercial surge protection. Built for DIN rail mounting, ensuring reliable safety for electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

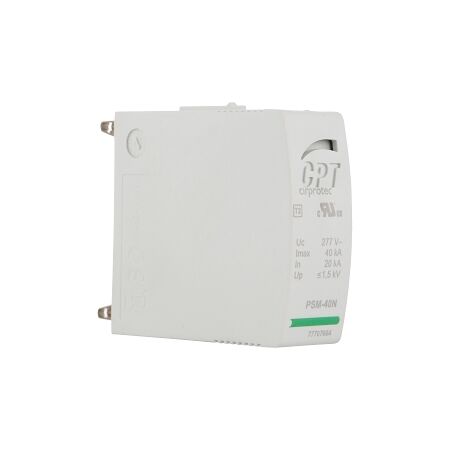

Product Name/Title: Cirprotec PSM Surge Protection Device Replacement Module N-PE Imax 40kA
Brand: NHP
SKU: CPTPSM40NMOD
Alternatively Known As: Surge Protection Module, Surge Protection Device, PSM Replacement Module
Technical Specifications
- Max Discharge Surge Current: 40 kA
- Protection Class: II
- Voltage Protection Level: 1.5 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 1 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Surge protection device with a maximum discharge surge current of 40 kA.
- Protection class II and voltage protection level of 1.5 kV.
- Designed for DIN rail mounting (top hat rail) 35 mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring surge protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing the risk of damage and waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cirprotec PSM Surge Protection Device Replacement Module N-PE Imax 40kA is available now for immediate purchase. Ideal for residential and commercial spaces requiring surge protection.
