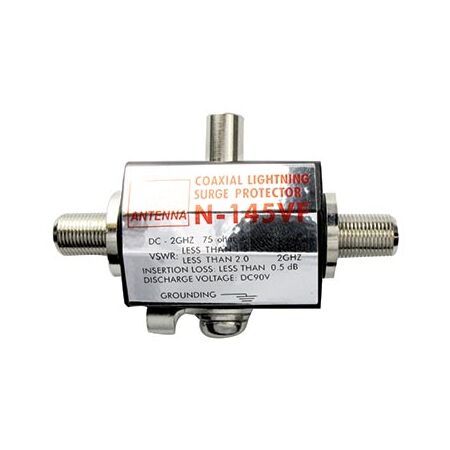

Surge Protector 2GHz 75Ohm | Lightning Protection | Outdoor & Indoor Use
Surge protector with 2GHz frequency range and 75Ohm impedance—ideal for safeguarding electronic equipment from lightning-induced surges. Built for both indoor and outdoor antennas, with DC feed suitable for satellite applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Protector 2GHz 75Ohm | Lightning Protection | Outdoor & Indoor Use
SKU: 19MM-SRG2G75F
Alternatively Known As: Lightning Surge Arrestor 75 Ohm, 2GHz Surge Protector, Antenna Lightning Protector, Outdoor Surge Suppressor
Technical Specifications
- Frequency Range: 5-2000MHz (2 GHz)
- VSWR: Less than 1.5:1
- Insertion Loss: Less than 0.1dB
- Discharge Voltage: DC 90V
- Max Power Rating: 200W
- Isolation: 3KV-7KV Peak
- Return Loss: 18dB
- Connector Type: F Female
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Suitable for both indoor and outdoor use
- DC feed suitable for satellite applications
- Safeguards electronic equipment from lightning induced surges
- Frequency range: 5-2000MHz (2 GHz)
- Return loss >= 18dB
- VSWR less than 1.5:1
- Insertion loss less than 0.1dB
- Discharge voltage DC 90V
- Max power rating 200W
- Isolation 3KV-7KV Peak
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper grounding and optimal surge protection performance.
Applications
- Outdoor antennas
- Indoor antenna systems
- Satellite applications requiring DC feed protection
- 75 Ohm systems up to 3GHz frequency
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Protects electronic equipment from damage, reducing electronic waste
- Durable design suitable for outdoor use reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster Surge Protector 2GHz 75Ohm is available now for immediate purchase. Ideal for protecting outdoor and indoor antenna systems from lightning surges.
