Surge Protector Type 2+3 | 20kA Protection | 1P+N Configuration | -40°C to +80°C by Cabac
The Cabac SURGE DEV V10 TYPE 2+3 1P+N 20kA is a robust surge protection device designed to safeguard electrical systems and sensitive equipment from voltage surges with a protection level under 1.1kV and a wide operating temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

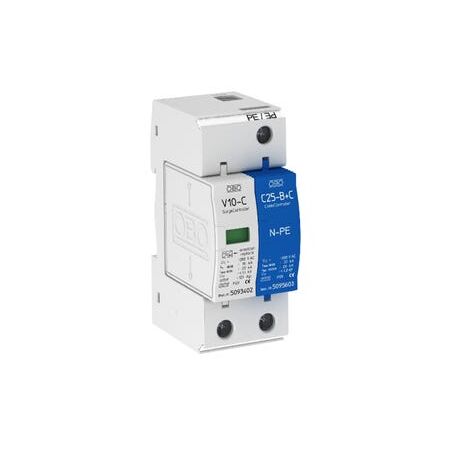

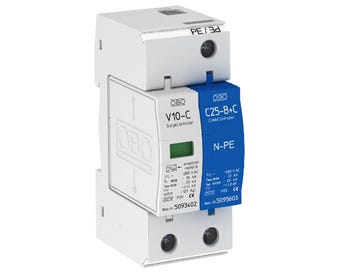

Product Name/Title: SURGE DEV V10 TYPE 2+3 1P+N 20kA
Brand: Cabac
SKU: V10-C-1-NPE
Alternatively Known As: Surge Protector, Surge Diverter, Surge Suppressor, Lightning Protector, Voltage Spike Protector
Technical Specifications
- Surge Protection Type: Type 2+3
- Poles: 1P+N
- Type 2 Protection Current: 20kA
- Protection Level: <1.1kV
- Operating Temperature Range: -40°C to +80°C
- Dimensions (H x L x W): 70mm x 60mm x 90mm
- Weight: 0.3 kg
Key Features
- Type 2+3 surge protection
- 20kA Type 2 protection rating
- Protection level less than 1.1kV
- Wide temperature rating from -40 to +80 degrees Celsius
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Electrical power systems requiring surge protection
- Residential, commercial, and industrial electrical installations
- Protection of sensitive electronic equipment from voltage spikes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps extend the lifespan of electrical equipment, reducing electronic waste
- Prevents damage that could lead to energy waste and resource-intensive repairs
Warranty Information
5 year warranty against manufacturing defects.
Available Now
The Cabac SURGE DEV V10 TYPE 2+3 1P+N 20kA Surge Protector is available now for immediate purchase. Ideal for protecting electrical installations in residential, commercial, and industrial environments.
