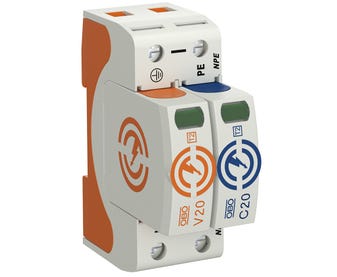

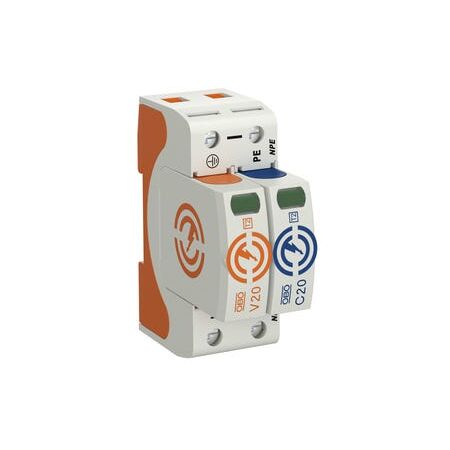

Surge Protector Type 2 40kA | <1.3kV Protection | -40°C to +80°C | 1P+N Configuration by Cabac
The Cabac SURGE DEV V20 TYPE 2 1P+N 40kA is a reliable surge protection device designed to safeguard electrical systems and equipment with a high 40kA surge capacity and robust temperature tolerance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SURGE DEV V20 TYPE 2 1P+N 40kA
Brand: Cabac
SKU: V20-1-NPE-280
Alternatively Known As: Surge Protector, Surge Protection Device, SPD Type 2, Lightning Surge Protector
Technical Specifications
- Surge Protection Type: Type 2
- Surge Current Capacity: 40kA
- Protection Level: <1.3kV
- Operating Temperature Range: -40°C to +80°C
- Poles: 1P+N
- Dimensions (H x L x W): 70mm x 60mm x 90mm
- Weight: 0.3 kg
Key Features
- Type 2 surge protection with 40kA capacity
- Protection level less than 1.3kV
- Wide operating temperature range from -40 to +80 degrees Celsius
- 5 year warranty
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Electrical power systems requiring surge protection
- Residential, commercial, and industrial electrical installations
- Protection of sensitive electronic equipment from transient overvoltages
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste
- Enhances system longevity and reliability, minimizing resource consumption
Warranty Information
5 year warranty against manufacturing defects.
Available Now
The Cabac SURGE DEV V20 TYPE 2 1P+N 40kA surge protector is available now for immediate purchase. Ideal for protecting electrical installations in residential, commercial, and industrial settings.
