Surge Suppressor 4-Pole | 40kA Max Discharge | DIN Rail Mount | UL1449 by NHP
Heavy-duty surge suppressor with 40kA max discharge and DIN rail mount—ideal for industrial and commercial applications. Built for reliable surge protection, with remote signaling contact for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

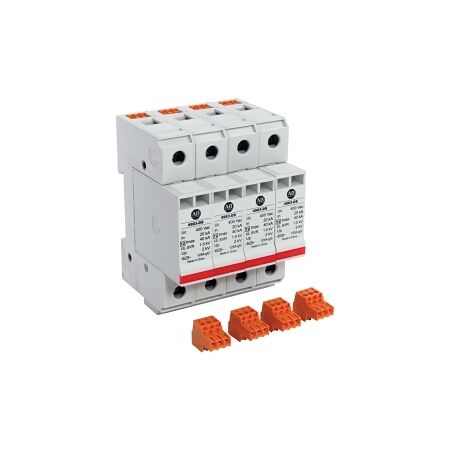

Product Name/Title: Allen-Bradley 4983DC Surge Suppressor DIN Rail Mount Heavy Duty UL1449 277 and 480V AC 40kA 4Pole
Brand: NHP
SKU: 4983DS277404
Alternatively Known As: Surge Diverter, Lightning Current Arrester, Surge Protection Device
Technical Specifications
- Number of Poles: 4
- Nominal Voltage AC: 420 V
- Nominal Discharge Surge Current (8/20): 20 kA
- Max Discharge Surge Current (8/20): 40 kA
- Voltage Protection Level: 1500 kV
- With Remote Signalling Contact: Yes
- Mounting Method: DIN rail mounting
- Nominal Tightening Torque: 22.5 Nm
- Dimensions (H x L x W): 101mm x 68mm x 18mm
- Weight: 1.0 kg
Key Features
- Heavy-duty surge protection with a maximum discharge surge current of 40 kA.
- DIN rail mounting for easy installation.
- Remote signaling contact for monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting electrical equipment in manufacturing and processing plants
- Commercial: Safeguarding power supply systems in office buildings and retail spaces
Standards & Compliance
- Complies with UL1449 for surge protective devices.
Environmental Benefits
- Designed to operate in extreme temperatures from -40 to 80 °C.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 4983DC Surge Suppressor is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable surge protection.
Non-Returnable & Non-Cancellable
