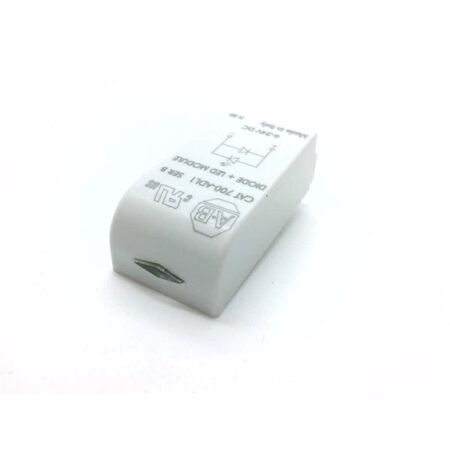

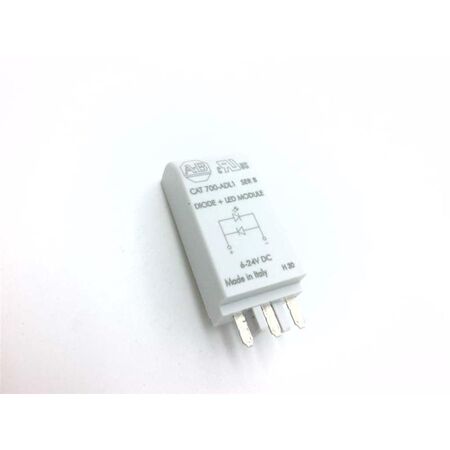

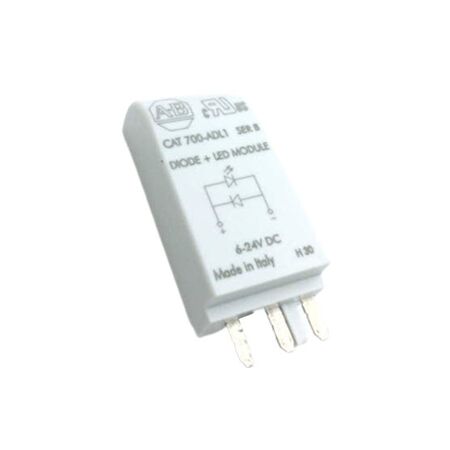

Surge Suppressor Diode+LED Module | 6-24VDC Operation | 3-Pin Configuration | by Allen-Bradley
The Surge Suppressor Diode+LED Module is designed for reliable surge protection in industrial automation systems, operating within a voltage range of 6-24VDC. With a 3-pin configuration, it seamlessly integrates with the 700-HN104 socket, ensuring safety and compliance in control panel setups. Ideal for protecting electrical components and enhancing equipment longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Range: 6-24VDC
- Pin Configuration: 3-pin
- Module Type: Diode + LED
- Compatible Socket: 700-HN104
- Dimensions (H x L x W): 30mm x 20mm x 50mm
- Weight: 0.1 kg
Key Features
- Surge suppressor with diode and LED module
- Operates at 6-24VDC
- 3-pin configuration
- Compatible with 700-HN104 socket
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and safety compliance.
Applications
- Industrial automation systems
- Control panel surge protection
- Use with 700-HN104 socket in electrical control setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical components from surge damage, reducing electronic waste
- Enhances equipment longevity, minimizing replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700ADL1 Surge Suppressor Diode+LED Module is available now for immediate purchase, ideal for industrial and control panel surge protection applications.
