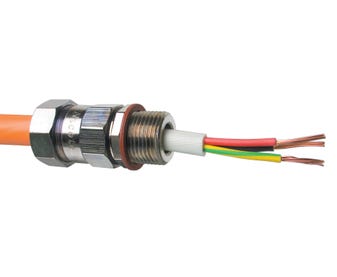

SWA Cable Gland 2.5 Inch BSP | IP66/68 Rated | Nickel-Plated Brass | Durable Sealing by Cabac
The Cabac Nicote SWA 2.5 Inch BSP Cable Gland offers secure mechanical connection and environmental sealing for steel wire armoured cables, suitable for demanding indoor and outdoor electrical installations with IP66/68 ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

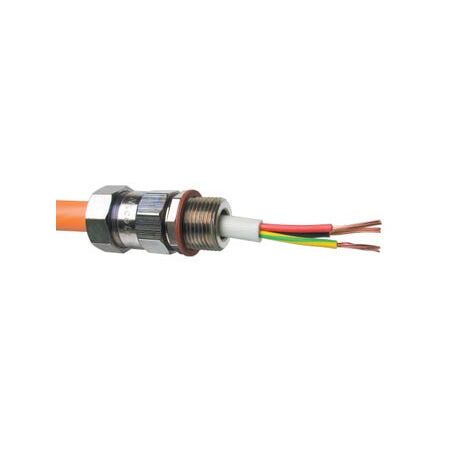

Product Name/Title: GLAND NICOTE SWA 2.5 INCH BSP OD 67.85-73.0
Brand: Cabac
SKU: WGN753
Alternatively Known As: SWA Cable Gland, Steel Wire Armoured Cable Gland, Nicote Cable Gland, BSP Cable Gland, Armoured Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature Range: -20°C to +80°C
- Thread Sizes: Metric (M16 to M63) and BSP options
- Functionality: Armour clamping and outer sheath sealing
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- Suitable for steel wire armoured (SWA) cables in indoor and outdoor installations
- Provides mechanical armour clamping and environmental sealing of the outer sheath
- Constructed from nickel-plated brass for durability and corrosion resistance
- Rated IP66/68 for water ingress protection
- Compatible with LNBxxN series locknut (locknut not included)
- Available in Metric (M16 to M63) and BSP thread sizes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and mechanical connection according to electrical standards.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Provides reliable sealing to prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Cabac warranty policy.
Available Now
The Cabac Nicote SWA 2.5 Inch BSP Cable Gland is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring secure and sealed cable terminations.
