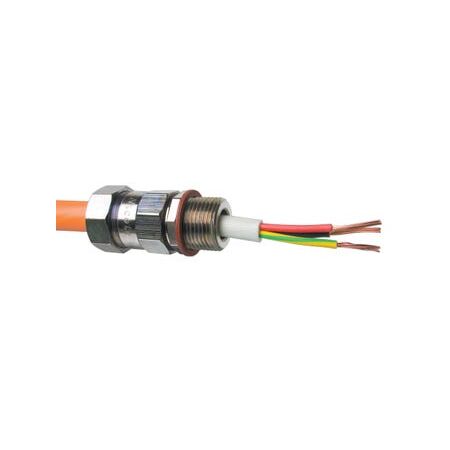

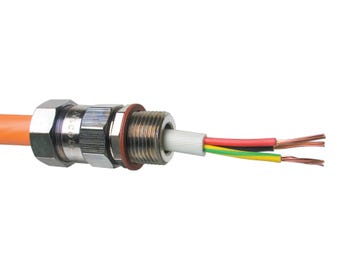

SWA Cable Gland 2.5 Inch BSP | Nickel-Plated Brass | IP66/68 Ingress Protection | Durable Design by Cabac
The Cabac Nicote SWA 2.5 Inch BSP Cable Gland offers secure mechanical connection and environmental sealing for steel wire armoured cables, suitable for demanding indoor and outdoor electrical installations with IP66/68 ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA 2.5 INCH BSP OD 75.8-79.4
Brand: Cabac
SKU: WGN755
Alternatively Known As: SWA Cable Gland, Armoured Cable Gland, Nickel-plated Brass Cable Gland, BSP Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature: -20°C to +80°C
- Thread Sizes: Metric (M16 to M63) and BSP options
- Functionality: Armour clamping and sealing of outer sheath
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.3 kg
Key Features
- Suitable for steel wire armoured (SWA) cables in indoor and outdoor installations
- Provides mechanical armour clamping and environmental sealing of the outer sheath
- Constructed from nickel-plated brass for durability and corrosion resistance
- Ingress Protection rated IP66/68 for water ingress resistance
- Compatible with LNBxxN series for secure mounting (locknut not included)
- Available in Metric (M16 to M63) and BSP thread sizes
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and mechanical connection.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Provides reliable sealing to prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Nicote SWA 2.5 Inch BSP Cable Gland is available for immediate purchase, ideal for industrial and commercial electrical installations requiring secure and sealed cable terminations.
