Trade Discount 17%

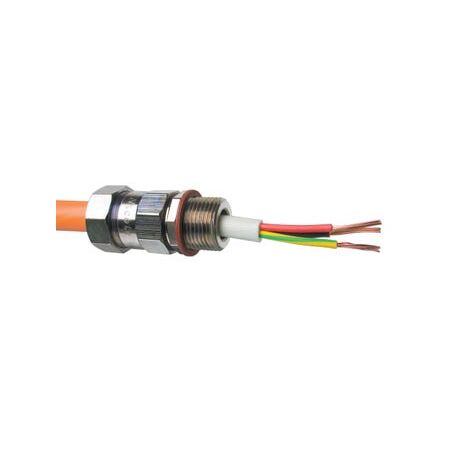

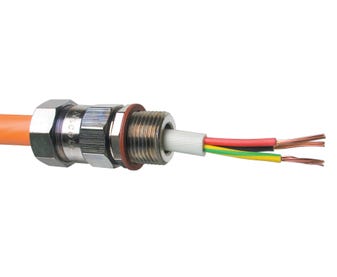

SWA Cable Gland 3 Inch | Nickel Plated Brass | IP66/68 Water Protection | Indoor & Outdoor Use by Cabac
The Cabac Nicote WGN 3 Inch SWA Cable Gland offers superior protection and secure sealing for steel wire armoured cables in both indoor and outdoor environments, featuring durable nickel plated brass construction and IP66/68 water ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA 3 INCH BSP OD 79.0-84.0
Brand: Cabac
SKU: WGN10A
Alternatively Known As: SWA Cable Gland, Steel Wire Armoured Cable Gland, Nicote Cable Gland, Nickel Plated Brass Cable Gland
Technical Specifications
- Material: Nickel plated brass
- Cable Type: Steel wire armoured cables
- Ingress Protection: IP66/68
- Earth Fixing Lug Diameter: 1/2 inch
- Application: Indoor and outdoor use
- Function: Armour clamp and seal on outer sheath
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Provides armour clamp and seal on outer sheath of steel wire armoured cables
- Suitable for indoor and outdoor use
- Nickel plated brass components for enhanced durability and corrosion resistance
- IP66/68 rated for excellent water ingress protection
- Complete with earth fixing lug of 1/2-inch diameter
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Industrial facilities for securing steel wire armoured cables
- Commercial buildings cable installations
- Outdoor cable installations requiring water ingress protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Effective sealing prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nicote WGN 3 Inch SWA Cable Gland is available now for immediate purchase. Ideal for securing and protecting steel wire armoured cables in industrial, commercial, and outdoor applications.
