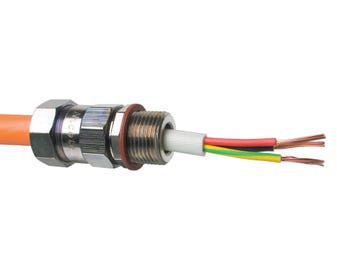

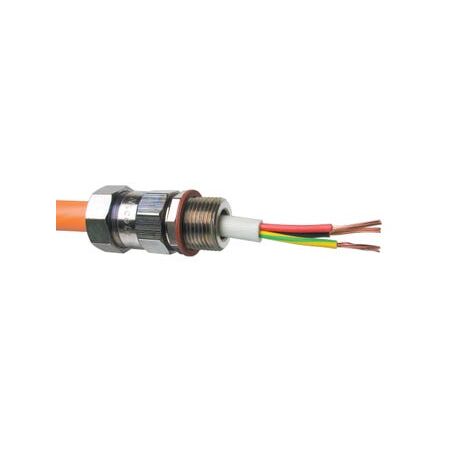

SWA Cable Gland M16 | Nickel-Plated Brass | IP66/68 Ingress Protection | Durable Design by Cabac
The Cabac Nicote SWA Cable Gland M16 OD 8.0-9.6 is designed for steel wire armoured cables, providing secure mechanical connection and environmental sealing with IP66/68 rating for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA M16 OD 8.0-9.6
Brand: Cabac
SKU: WGN162
Alternatively Known As: SWA Cable Gland, Steel Wire Armoured Cable Gland, Nicote Cable Gland M16, Nickel-plated Brass Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature: -20°C to +80°C
- Thread Sizes: Metric M16 to M63 and BSP options available
- Functionality: Armour clamping and sealing of outer sheath
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.05 kg
Key Features
- Suitable for SWA cables in indoor and outdoor installations
- Provides armour clamping and sealing of the outer sheath
- Constructed from nickel-plated brass for durability and corrosion resistance
- Rated IP66/68 for water ingress protection
- Available in metric (M16 to M63) and BSP thread sizes
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and mechanical connection.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Provides effective sealing to prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Nicote SWA Cable Gland M16 OD 8.0-9.6 is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring secure and sealed cable terminations.
