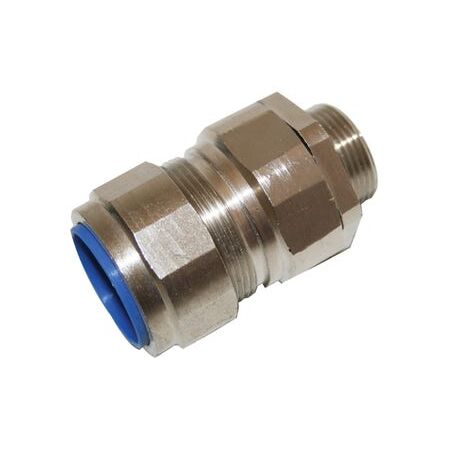

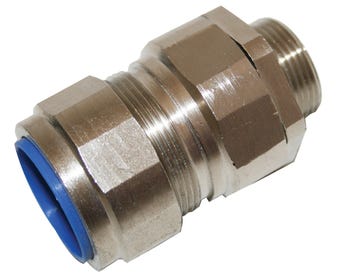

SWA Cable Gland M32 | Nickel Plated Brass | IP66 Weatherproof Seal | 26.0-33.9mm by Cabac
The Cabac SWA Gland M32 is a nickel plated brass cable gland designed for steel wire armoured cables with cable diameters from 26.0 to 33.9mm. It features a neoprene rubber seal for IP66 weatherproof protection and a unique wedge seal for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M32 Cable OD 26.0 - 33.9mm
Brand: Cabac
SKU: CW32
Alternatively Known As: Armoured Cable Gland M32, SWA Cable Gland M32, Metal Cable Gland M32, Brass Cable Gland for Armoured Cable
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- IP Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Diameter Range: 26.0mm to 33.9mm
- Armour Wire Diameter: 1.6mm to 2mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal provides IP66 dust and water protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable diameter range from 26.0mm to 33.9mm
- Suitable for cables with armour wire diameter 1.6-2mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and compliance with electrical safety standards.
Applications
- Suitable for steel wire armoured cables in industrial and commercial electrical installations
- Used with PVC and XLPE insulated armoured cables
- Ideal for outdoor and indoor cable protection requiring weatherproof sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating extends product life, reducing waste
- Weatherproof sealing prevents environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac SWA Gland M32 Cable OD 26.0 - 33.9mm is available now for immediate purchase. Ideal for secure and weatherproof cable connections in industrial and commercial electrical installations.
