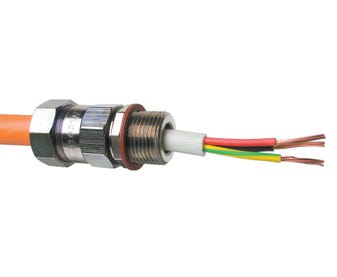

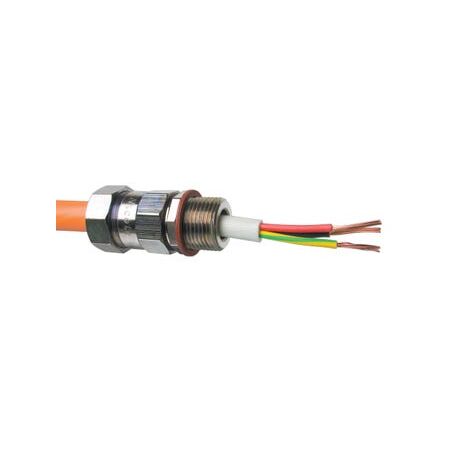

SWA Cable Gland M40 | IP66/68 Rated | Nickel-Plated Brass | Durable Design by Cabac
The Cabac Nicote SWA Cable Gland M40 provides secure mechanical connection and environmental sealing for steel wire armoured cables in demanding indoor and outdoor applications. Made from nickel-plated brass with IP66/68 rating for water ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA M40 OD 39.1-41.5
Brand: Cabac
SKU: WGN405
Alternatively Known As: SWA Cable Gland M40, Steel Wire Armoured Cable Gland, Nickel Plated Brass Cable Gland, IP66 Cable Gland, Industrial Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature: -20°C to +80°C
- Thread Size: Metric M40 (39.1-41.5 mm outer diameter)
- Compatible with LNBxxN series locknuts (locknut not included)
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for steel wire armoured (SWA) cables in indoor and outdoor installations
- Provides mechanical armour clamping and environmental sealing of the outer sheath
- Constructed from durable nickel-plated brass with corrosion resistance
- Ingress Protection rated IP66/68 for water ingress resistance
- Compatible with LNBxxN series locknuts (locknut not included)
- Available in metric thread sizes M16 to M63 and BSP options
- Operating temperature range from -20°C to +80°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and mechanical connection.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Seals cable installations to prevent environmental contamination and ingress
- Supports long-lasting, reliable electrical connections reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nicote SWA Cable Gland M40 is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring secure and sealed cable connections.
