SWA Cable Gland M50 | Brass Body | IP66 Weatherproof Seal | 36.5-46.7mm by Cabac

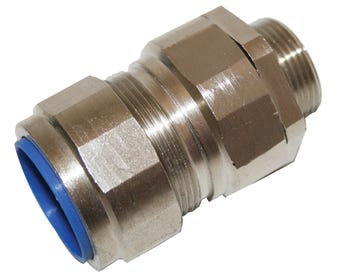

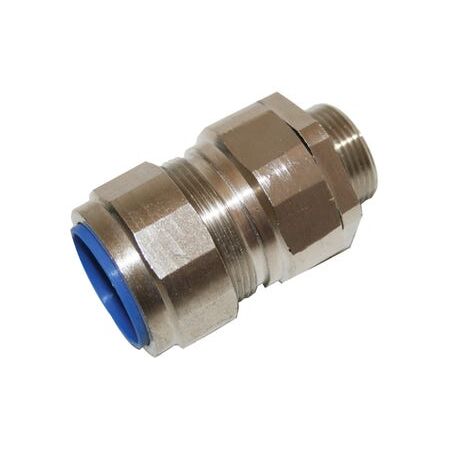

The Cabac SWA Gland M50 is a nickel plated brass cable gland designed for steel wire armoured cables with cable outer diameters from 36.5 to 46.7mm. It features a neoprene rubber seal for IP66 weatherproof protection and a unique wedge seal for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M50 Cable OD 36.5 - 46.7mm
Brand: Cabac
SKU: CW50S
Alternatively Known As: Armoured Cable Gland M50, SWA Cable Gland M50, Metal Cable Gland, Brass Cable Gland for Armoured Cable
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- IP Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Outer Diameter Range: 36.5mm to 46.7mm
- Armour Wire Diameter: 2.0mm to 2.5mm
- Mounting Thread Diameter: 50mm
- Thread Length: 15mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.2 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal provides IP66 dust and water protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable range simplifying product selection
- Lock nut sold separately
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and compliance with electrical safety standards.
Applications
- Suitable for steel wire armoured cables in electrical installations
- Used with PVC and XLPE insulated armoured cables
- Ideal for industrial and commercial cable management requiring weatherproof sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating extends product life, minimizing waste
- Weatherproof sealing prevents ingress, reducing maintenance and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac SWA Gland M50 Cable OD 36.5 - 46.7mm is available for immediate purchase, ideal for secure and weatherproof armoured cable connections in industrial and commercial electrical installations.
