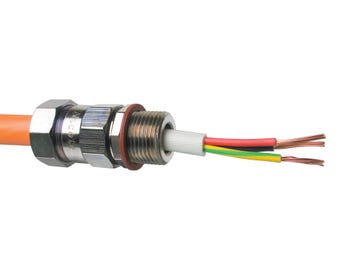

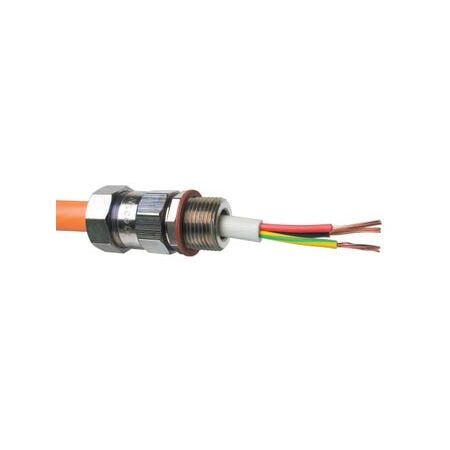

SWA Cable Gland M50 | IP66/68 Protection | Nickel-Plated Brass | Durable Design by Cabac
The Cabac Nicote SWA Cable Gland M50 offers secure mechanical connection and environmental sealing for steel wire armoured cables in demanding indoor and outdoor applications, featuring IP66/68 protection and durable nickel-plated brass construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA M50 OD 48.6-53.5
Brand: Cabac
SKU: WGN504
Alternatively Known As: SWA Cable Gland M50, Steel Wire Armoured Cable Gland, Nickel-plated Brass Cable Gland, IP66 Cable Gland, Armoured Cable Gland M50
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature: -20°C to +80°C
- Thread Sizes: Metric M16 to M63 and BSP options available
- Functionality: Armour clamping and sealing of outer sheath
- Dimensions (H x L x W): 55mm x 70mm x 55mm
- Weight: 0.1 kg
Key Features
- Suitable for SWA cables in indoor and outdoor installations
- Provides armour clamping and sealing of the outer sheath
- Constructed from nickel-plated brass for durability and corrosion resistance
- Rated IP66/68 for water ingress protection
- Available in metric thread sizes M16 to M63 and BSP options
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Provides reliable sealing to prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Nicote SWA Cable Gland M50 is available for immediate purchase, ideal for secure and protected cable installations in industrial and commercial environments.
