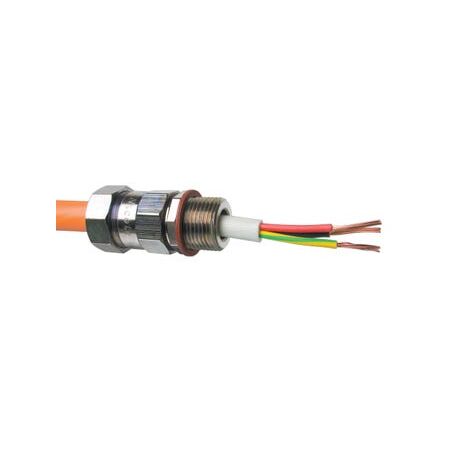

SWA Cable Gland M50 | Nickel-Plated Brass | IP66/68 Protection | Durable Design by Cabac
The Cabac Nicote SWA M50 Cable Gland is designed for secure mechanical connection and environmental sealing of steel wire armoured cables in demanding indoor and outdoor applications. Made from durable nickel-plated brass with IP66/68 ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA M50 OD 53.1-55.5
Brand: Cabac
SKU: WGN505
Alternatively Known As: SWA Cable Gland M50, Steel Wire Armoured Cable Gland, Nickel-Plated Brass Cable Gland, Industrial Cable Gland, IP66 Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature: -20°C to +80°C
- Thread Sizes: Metric M16 to M63 and BSP options available
- Functionality: Armour clamping and sealing of outer sheath
- Dimensions (H x L x W): 55mm x 70mm x 55mm
- Weight: 0.1 kg
Key Features
- Suitable for steel wire armoured (SWA) cables in indoor and outdoor installations
- Provides mechanical armour clamping and environmental sealing of the outer sheath
- Constructed from nickel-plated brass for durability and corrosion resistance
- Rated IP66/68 for water ingress protection
- Compatible with LNBxxN series locknut (locknut not included)
- Available in metric thread sizes M16 to M63 and BSP options
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and mechanical connection.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Provides reliable sealing to prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Nicote SWA M50 Cable Gland is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring secure and sealed cable terminations.
