SWA Cable Gland M63 | Brass Body | IP66 Weatherproof Seal | 48.9-59.4mm by Cabac

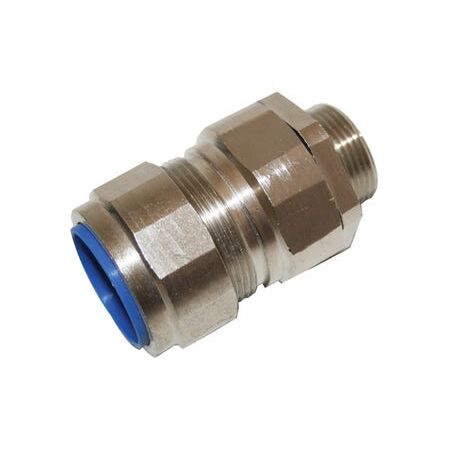

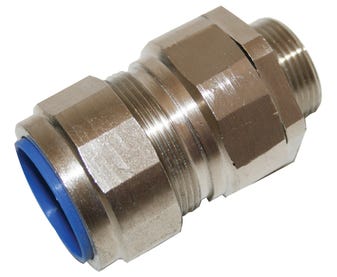

The Cabac SWA Gland M63 is a nickel plated brass cable gland designed for steel wire armoured cables with cable outer diameters from 48.9 to 59.4mm. It features a neoprene rubber seal for IP66 weatherproof protection and a unique wedge seal for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M63 Cable OD 48.9 - 59.4mm
Brand: Cabac
SKU: CW63S
Alternatively Known As: Armoured Cable Gland M63, SWA Cable Gland M63, Metal Cable Gland for Armoured Cable, Brass SWA Gland
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- Protection Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Outer Diameter Range: 48.9mm to 59.4mm
- Armour Wire Diameter: 2.5mm
- Mounting Thread Diameter: 63mm
- Thread Length: 15mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal provides IP66 dust and water protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable range simplifying product selection
- Suitable for PVC and XLPE insulated armoured cables
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and compliance with electrical safety standards.
Applications
- Suitable for steel wire armoured cables in industrial and commercial electrical installations
- Used with PVC and XLPE insulated armoured cables
- Ideal for weatherproof cable connections requiring dust and water protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating prevents corrosion extending product life
- Weatherproof sealing reduces environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac SWA Gland M63 Cable OD 48.9 - 59.4mm is available for immediate purchase. Ideal for secure and weatherproof armoured cable connections in industrial and commercial electrical installations.
