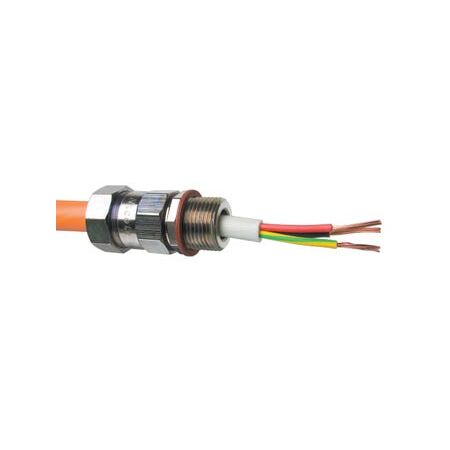

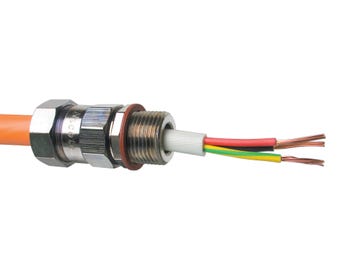

SWA Cable Gland M63 | Nickel-Plated Brass | IP66/68 Protection | Durable Design by Cabac
The Cabac Nicote SWA Cable Gland M63 is designed for steel wire armoured cables, providing secure mechanical connection and environmental sealing with IP66/68 rating for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE SWA M63 OD 59.95-63.5
Brand: Cabac
SKU: WGN635
Alternatively Known As: SWA Cable Gland, Armoured Cable Gland, Nicote Cable Gland, Nickel-plated Brass Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68
- Operating Temperature: -20°C to +80°C
- Thread Sizes: Metric M16 to M63 and BSP options
- Locknut not included; compatible with LNBxxN series
- Dimensions (H x L x W): 65mm x 65mm x 65mm
- Weight: 0.1 kg
Key Features
- Suitable for SWA cables in indoor and outdoor installations
- Provides armour clamping and sealing of the outer sheath
- Constructed from nickel-plated brass for durability and corrosion resistance
- Rated IP66/68 for water ingress protection
- Available in metric thread sizes M16 to M63 and BSP options
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and mechanical connection.
Applications
- Industrial environments
- Electrical installations in commercial and outdoor settings
- Areas requiring ingress protection and secure cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Provides reliable sealing to prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nicote SWA Cable Gland M63 is available now for immediate purchase. Ideal for secure and sealed cable installations in industrial and commercial environments.
