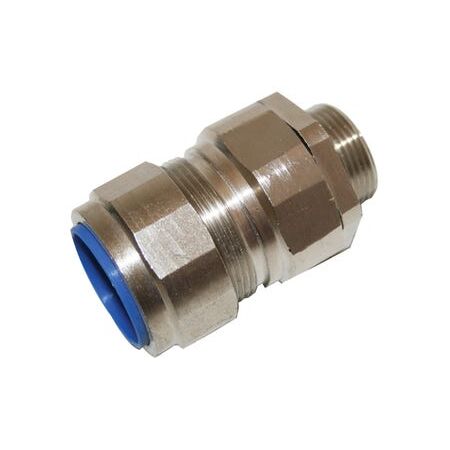

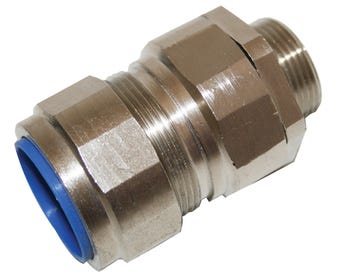

SWA Gland M20 for Cable OD 8.0-13.4mm | Nickel Plated Brass | IP66 Weatherproof | Quick Installation by Cabac
The Cabac SWA Gland M20 is a nickel plated brass cable gland designed for steel wire armoured cables with cable outer diameters from 8.0 to 13.4mm. It features a neoprene rubber seal providing IP66 weatherproof protection and a unique wedge seal for quick and secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M20 Cable OD 8.0 - 13.4mm
Brand: Cabac
SKU: CW20/16
Alternatively Known As: SWA Cable Gland M20, Armoured Cable Gland M20, Metal Cable Gland M20, Brass Cable Gland M20
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- IP Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Outer Diameter Range: 8.0 - 13.4mm
- Mounting Thread Diameter: 20mm
- Thread Length: 15mm
- Armour Wire Diameter: 0.9mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.05 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal excludes dust and water
- IP66 rated weatherproof protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable range simplifying product selection
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and compliance with electrical safety standards.
Applications
- Steel wire armoured cable installations
- PVC and XLPE insulated armoured cables
- Weatherproof outdoor and indoor cable connections requiring dust and water protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating extends product life reducing waste
- Weatherproof design prevents ingress damage, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac SWA Gland M20 Cable OD 8.0 - 13.4mm is available now for immediate purchase. Ideal for secure and weatherproof armoured cable connections in industrial and commercial electrical installations.
