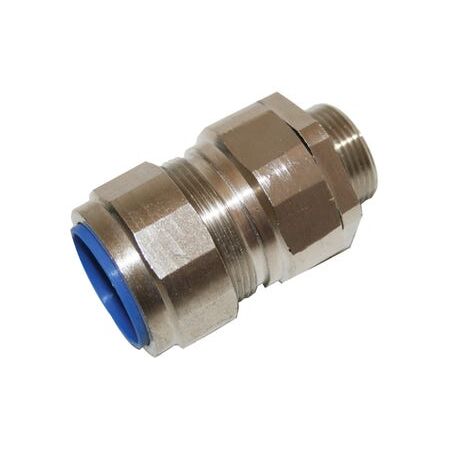

SWA Gland M40 Cable Gland | Brass Body | IP66 Weatherproof | Unique Wedge Seal by Cabac
The Cabac SWA Gland M40 is a nickel plated brass cable gland designed for steel wire armoured cables with cable outer diameters from 31.0 to 40.4mm. It features a neoprene rubber seal for IP66 weatherproof protection and a unique wedge seal for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M40 Cable OD 31.0 - 40.4mm
Brand: Cabac
SKU: CW40
Alternatively Known As: SWA Cable Gland M40, Armoured Cable Gland M40, Metal Cable Gland M40, Brass Cable Gland for Armoured Cable
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- IP Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Outer Diameter Range: 31.0 - 40.4mm
- Armour Wire Diameter: 1.6 - 2mm
- Mounting Thread Diameter: 40mm
- Thread Length: 15mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.2 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal provides IP66 dust and water protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable range simplifying product selection
- Suitable for PVC and XLPE insulated armoured cables
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and safety.
Applications
- Suitable for steel wire armoured cables in electrical installations
- Used in PVC and XLPE insulated armoured cable applications
- Ideal for weatherproof cable connections requiring dust and water protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating prevents corrosion, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac SWA Gland M40 Cable OD 31.0 - 40.4mm is available for immediate purchase, ideal for secure and weatherproof armoured cable connections in electrical installations.
