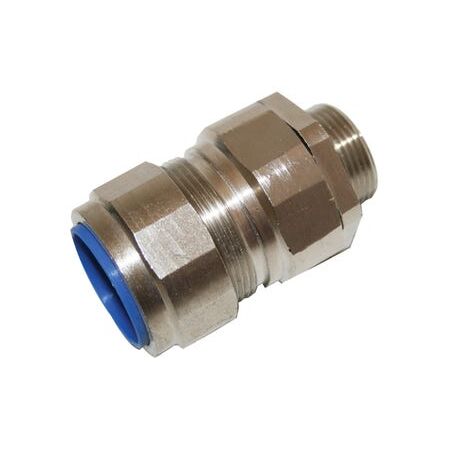

SWA Gland M63 Cable Gland | Nickel Plated Brass | IP66 Weatherproof | 58.0-65.9mm by Cabac
The Cabac SWA Gland M63 is a nickel plated brass cable gland designed for steel wire armoured cables with cable outer diameters from 58.0 to 65.9mm. It features a neoprene rubber seal for IP66 weatherproof protection and a unique wedge seal for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M63 Cable OD 58.0 - 65.9mm
Brand: Cabac
SKU: CW63
Alternatively Known As: SWA Cable Gland M63, Armoured Cable Gland M63, Metal Cable Gland M63, Nickel Plated Brass Cable Gland
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- Protection Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Outer Diameter Range: 58.0 - 65.9mm
- Armour Wire Diameter: 2.5mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal provides IP66 dust and water protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable range simplifying product selection
- Suitable for PVC and XLPE insulated armoured cables
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and compliance.
Applications
- Steel wire armoured cable installations
- PVC and XLPE insulated armoured cables
- Weatherproof cable gland applications requiring dust and water protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating extends product life, minimizing waste
- Weatherproof design prevents ingress, reducing maintenance and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac SWA Gland M63 is available for immediate purchase, ideal for secure and weatherproof armoured cable connections in industrial and commercial electrical installations.
