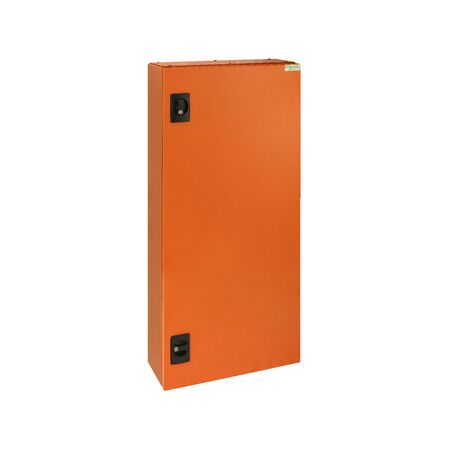

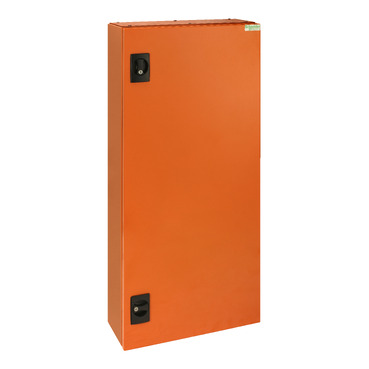

SWBD MB 72P C60 IP42 250A Main Switchboard | 72 Poles | Surface Mount Design | Durable Steel Construction | @Pack of 1 | by Clipsal
The SWBD MB 72P C60 IP42 250A Main Switchboard is designed for robust electrical distribution, accommodating up to 72 poles and rated for a maximum current of 250A. With an IP42 rating for protection against solid objects and dripping water, this surface mount switchboard is perfect for commercial, industrial, and large residential applications, ensuring compliance with Australian electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SWBD MB 72P C60 IP42 250A Main Switchboard | 72 Poles | Surface Mount Design | Durable Steel Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMB272E32X15
Alternatively Known As: ['Clipsal 72 Pole Main Switchboard', 'Clipsal 250A Distribution Board', 'Clipsal MB 72P C60 Switchboard', 'Clipsal SCHMB272E32X15', 'Clipsal IP42 Main Board']
Technical Specifications
- Number of Poles: 72
- Current Rating: 250A
- Ingress Protection: IP42
- Mounting: Surface mount
- Material: Powder-coated steel
- Voltage: 415V AC
- Main Switch: Included
- Compliance: AS/NZS 3000, AS/NZS 61439
- Dimensions (H x L x W): 1200mm x 250mm x 800mm
- Weight: 45 kg
Key Features
- Accommodates up to 72 poles for circuit protection
- Rated for 250A maximum current
- IP42 protection against solid objects and dripping water
- Robust steel construction for durability
- Surface mount design for easy installation
- Compliant with Australian electrical safety standards
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial buildings: Office complexes, shopping centres
- Industrial facilities: Factories, warehouses
- Large residential developments: Apartment blocks, multi-dwelling units
- Infrastructure projects: Schools, hospitals, public buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable steel construction ensures long service life, reducing replacement frequency and waste.
- Supports safe and efficient electrical distribution, minimizing energy loss.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SWBD MB 72P C60 IP42 250A Main Switchboard is available for immediate purchase. Ideal for commercial, industrial, and large residential electrical distribution applications.
