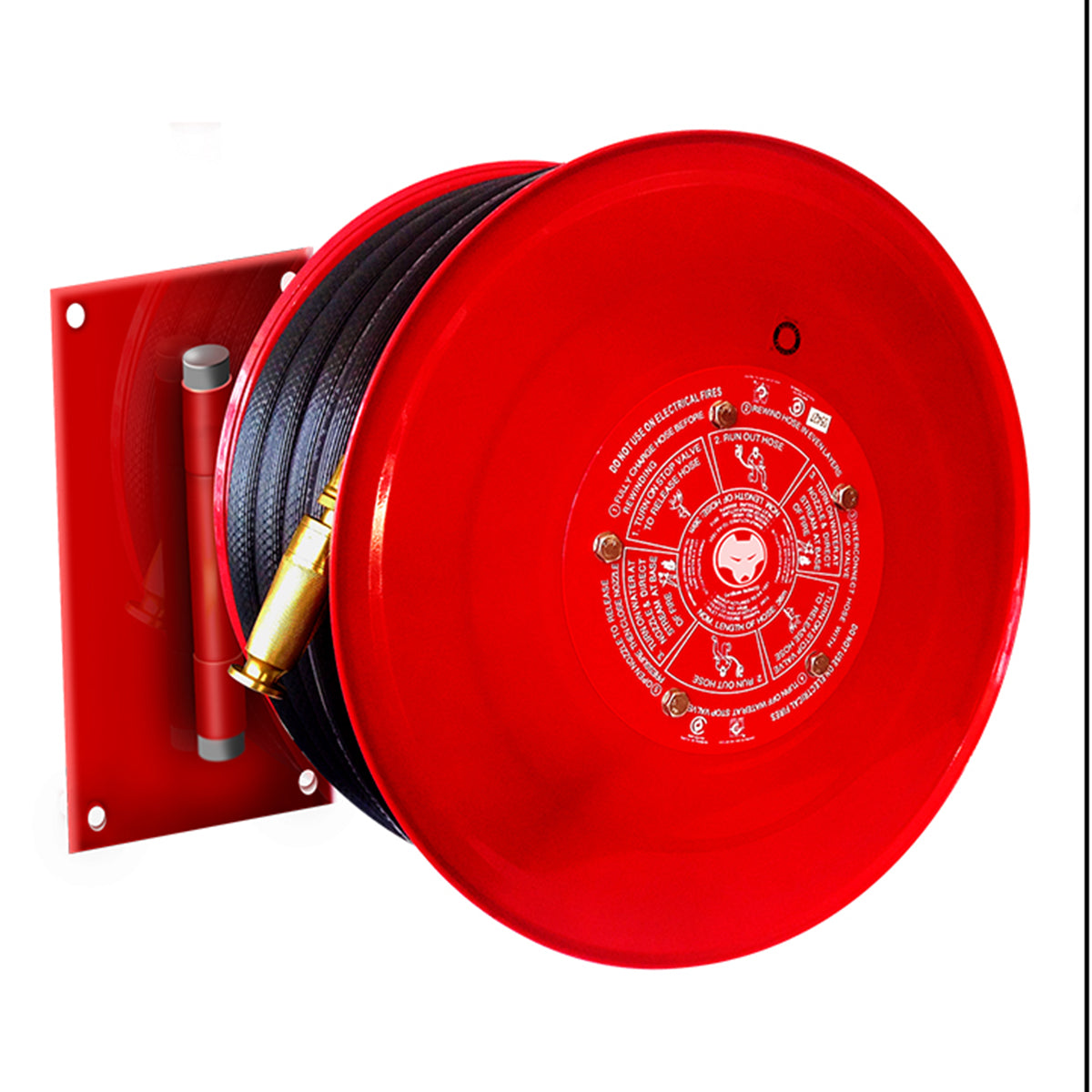

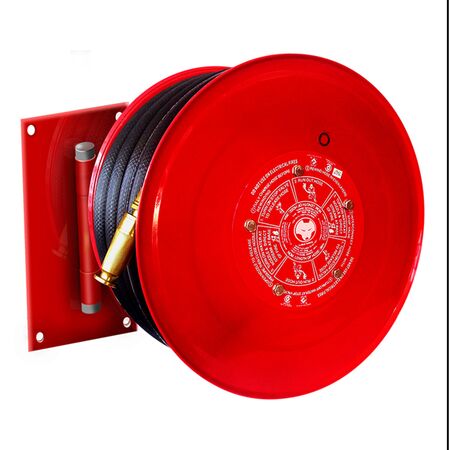

Swing Arm Fire Hose Reel 36m x 19mm | Metal Drum & Stainless Steel Waterway | Durable Design by Firebox
Ensure fire safety with this 36m x 19mm swing arm fire hose reel, featuring a durable metal drum and stainless steel waterway construction. Ideal for commercial and industrial applications, it offers easy access and reliable performance in emergency situations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Swing Arm Fire Hose Reel 36m x 19mm | Metal Drum & Stainless Steel Waterway | Durable Design by Firebox
Brand: Firebox
SKU: HR36SA-WF
Alternatively Known As: Fire Hose Reel 36m, 19mm Fire Hose Reel, Swing Arm Hose Reel, Fire Safety Hose Reel
Technical Specifications
- Hose Length: 36 meters
- Hose Diameter: 19mm
- Drum Material: Metal with red powder coating
- Waterway Construction: Stainless Steel
- Inlet Pipe/Union: PVC
- Maximum Working Pressure: 1.4 MPa
- Hydraulic Test Pressure: 2.0 MPa
- Mounting Plate: 1mm Steel, powder-coated red
- Nozzle Material: Brass
- Gooseneck Material: PVC
- Plate Diameter: 460mm
- Back Plate to Wall Distance: 510mm (maximum)
- Dimensions (H x L x W): 510mm x 510mm x 460mm
- Weight: 26 kg
Key Features
- 36 meters long, 19mm diameter hose for extensive reach

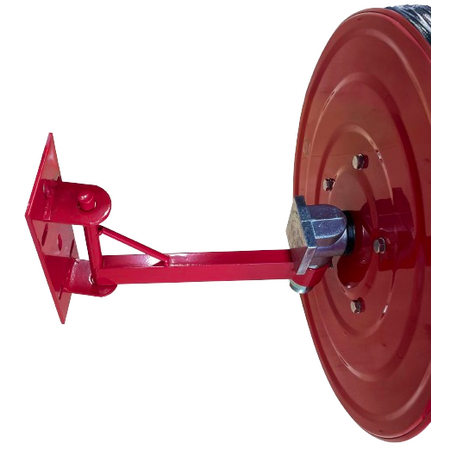

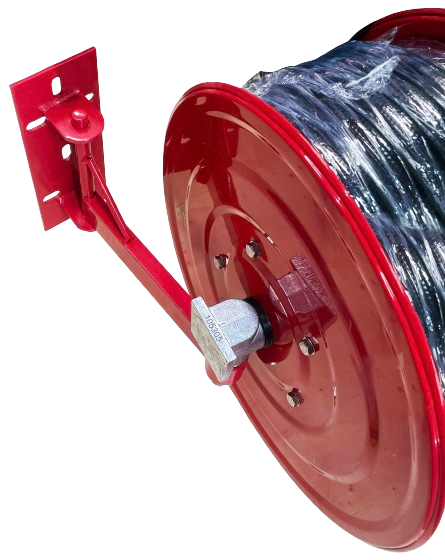

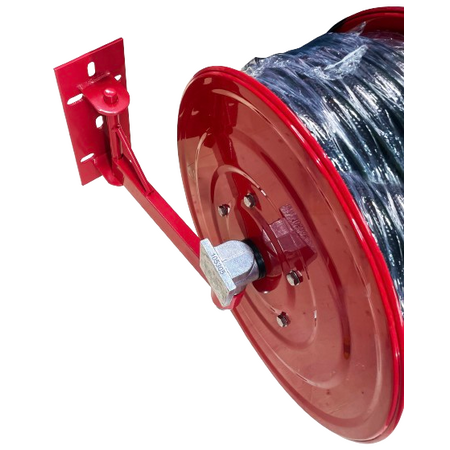

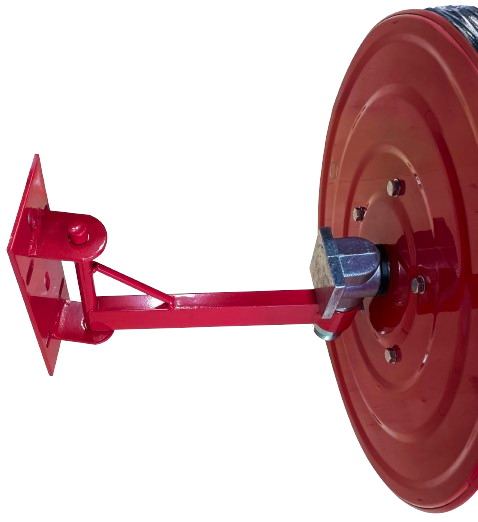

- Swing arm design for easy access and operation
- Metal drum with red powder coating for durability
- Stainless steel waterway construction for corrosion resistance
- PVC inlet pipe and gooseneck for flexibility and durability
- Brass nozzle for reliable water flow control
- Mounting plate made of 1mm steel with powder-coated red finish
- Maximum working pressure of 1.4 MPa and hydraulic test pressure of 2.0 MPa
Professional Installation Requirements
- Professional installation by certified fire safety technicians is recommended to ensure compliance with safety standards and optimal functionality.
Applications
- Fire safety in commercial buildings
- Industrial fire protection
- Emergency fire response in warehouses and factories
- Public and residential building fire safety
Standards & Compliance
- Complies with AS/NZS 1221 – Fire Hose Reels
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
- Corrosion-resistant materials extend product life, reducing environmental impact.
Warranty Information
12 months warranty covering manufacturing defects.
Available Now
The Firebox 36m x 19mm Swing Arm Fire Hose Reel is available now for immediate purchase. Ideal for commercial, industrial, and residential fire safety applications.
