Switch Disconnector 200 A | 3 Poles | Black Rotary Handle | IP40 by Clipsal
Switch disconnector with 200 A operational current and direct front rotary handle—ideal for industrial and commercial power systems. Built for reliable disconnection, with IP40 protection and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

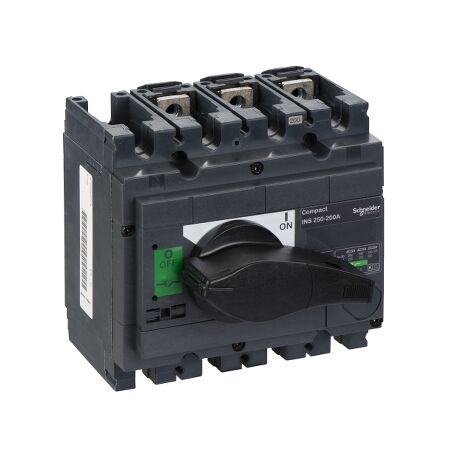

Product Name/Title: ComPact, Switch disconnector, Compact INS250-200 , 200 A, standard version with black rotary handle, 3 poles
Brand: Clipsal
SKU: 31102
Alternatively Known As: Switch Disconnector, Circuit Breaker, Electrical Isolator
Technical Specifications
- Rated operational current: 200 A AC-22A
- Rated operational voltage: 690 V AC, 125 V DC
- Control type: Direct front rotary handle
- Mounting mode: Fixed
- IP Rating: IP40
- IK Rating: IK07
- Rated insulation voltage: 800 V AC
- Rated short-circuit making capacity: 30 kA
- Dimensions (H x L x W): 136mm x 96mm x 140mm
- Weight: 2 kg
Key Features
- 200 A rated operational current for AC and DC applications.
- Direct front rotary handle for easy operation.
- Mechanical durability of 15,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and control systems
- Commercial: Electrical installations requiring reliable disconnection
Standards & Compliance
- Complies with IEC 60947-1 and IEC 60947-3.
Environmental Benefits
- Complies with IEC standards for safety and performance.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal ComPact INS250-200 Switch Disconnector is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
