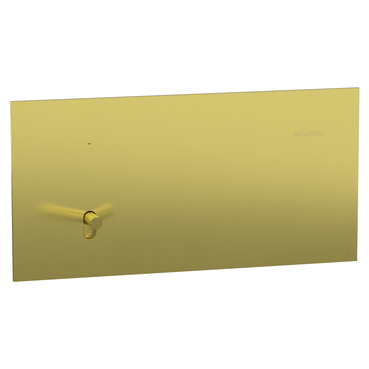

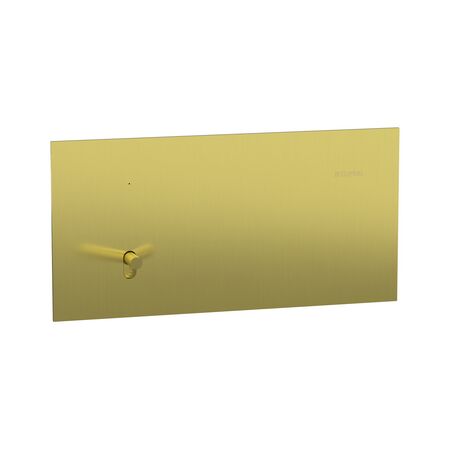

Switch Horiz 1G 10AX | 1 Gang Toggle Switch | 20A Rated Current | Flush Mounting | by Clipsal
The Switch Horiz 1G 10AX is a reliable 1 gang horizontal toggle switch designed for both residential and commercial electrical installations. With a rated current of 20A and operational voltage of 230/240V, it’s perfect for controlling LEDi lamps up to 250W. Featuring screw terminal connections and a flush mounting design, this switch ensures safety and compliance with AS/NZS 60669 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Gang Horizontal Toggle Switch | 10AX Rated | 1-Pole 1/2-Way Function | Flush Mounting | by Clipsal
Brand: Clipsal
SKU: CLI1044TA-BB
Alternatively Known As: 4 Gang Horizontal Toggle Switch, 4G 10AX Switch, Clipsal 4 Gang Switch
Technical Specifications
- Device presentation: complete product
- Number of gangs: 4
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Control type: toggle switch
- Connections: screw terminals
- Device mounting: flush
- Number of rockers: 1
- Installation direction: horizontal
- Load type: LEDi lamp 0 to 250 W
- Clamping connection capacity: 4 x 1.5 to 3 x 2.5 mm²
- Screwdriver shape: Philips No 2, square drive No 1 (SQ1)
- Wire stripping length: 10 mm
- Fixing mode: screw
- Fixing center: 84 mm
- Switch function: 1-pole 1/2-way
- Ambient air temperature for operation: 0 to 45 °C
- Relative humidity: 10 to 95 %
- Material: ceramic
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.2 kg
Key Features
- 4 gangs toggle switch with 1-pole 1/2-way function
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Flush mounting with horizontal installation
- Screw terminal connections with clamping capacity 4 x 1.5 to 3 x 2.5 mm²
- Suitable for LEDi lamps 0 to 250 W
- Mercury free and RoHS compliant
- Certified with RCM
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential: Home lighting control
- Commercial: Office and retail lighting control
- Industrial: General lighting control applications
Standards & Compliance
- Complies with AS/NZS 60669 for switches and control devices
Environmental Benefits
- Mercury free design reduces environmental hazards
- RoHS compliant ensuring reduced hazardous substances
- Energy efficient control for LED lighting
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Switch Horiz 4G 10AX CLI1044TA-BB is available for immediate purchase, ideal for residential, commercial, and industrial lighting control applications.
