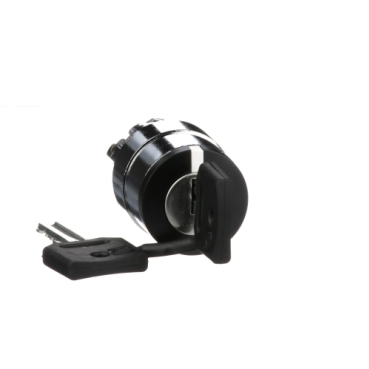

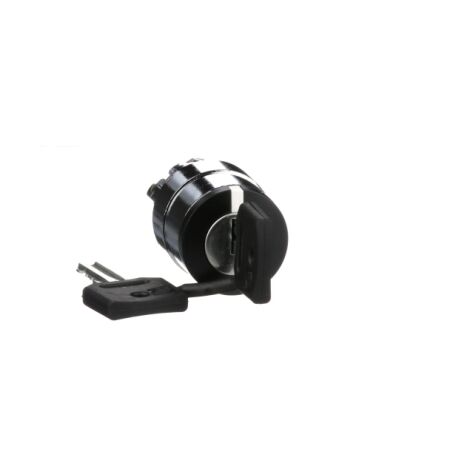

Switch Key Selector 2 Position | 2-Position Key-Operated | IP65 Rated | Durable Construction | @Pack of 1 | by Clipsal
The Switch Key Selector 2 Position is a robust key-operated selector switch designed for industrial control panels. With a secure 2-position operation and IP65 ingress protection, it ensures reliable performance in demanding environments. Ideal for commercial buildings and machinery control, this switch prevents unauthorized access while integrating easily into control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switch Key Selector 2 Position | 2-Position Key-Operated | IP65 Rated | Durable Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BG4
Alternatively Known As: Key Switch, 2 Position Key Selector, Key Operated Switch, Selector Switch with Key, Clipsal Key Switch
Technical Specifications
- Type: Key selector switch
- Positions: 2 (maintained)
- Contact configuration: 1NO/1NC (typical)
- Rated operational voltage: 250V AC
- Rated current: 10A
- Mounting: Panel mount
- Material: High-grade plastic and metal components
- Ingress protection: IP65 (front face)
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.15 kg
Key Features
- 2-position key-operated selector switch
- Robust and durable construction for industrial environments
- Secure key operation to prevent unauthorized access
- Easy integration into control panels
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian standards and safe operation.
Applications
- Industrial control panels
- Commercial buildings
- Machinery and equipment control
- Security systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Reliable operation minimizes downtime and energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Switch Key Selector 2 Position SCHZB4BG4 is available for immediate purchase. Ideal for industrial and commercial control panel applications.
