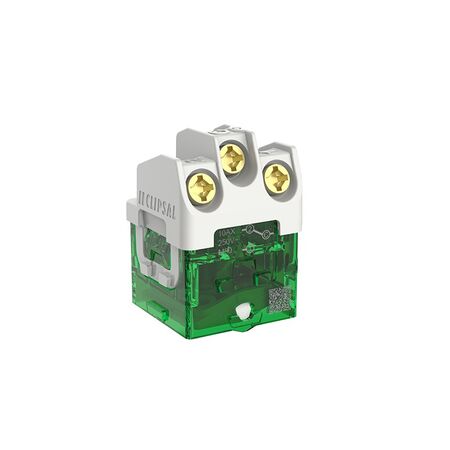

Switch Mechanism 1-Way/2-Way | 250V 10AX LED | Slim Design
Switch mechanism with 1-way/2-way functionality and 250V 10AX rating—ideal for modern lighting solutions. Built for easy customization, with a sleek design and LED indicator for versatile environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switch Mechanism 1-Way/2-Way | 250V 10AX LED | Slim Design
SKU: 40ML
Alternatively Known As: 1-Way Switch Mechanism, 2-Way Switch Mechanism, LED Switch Mechanism, Slim Switch Mechanism, Clipsal Switch Module
Technical Specifications
- Rated current: 10AX, M80 A
- Rated operational voltage: 250V AC, 50Hz
- Switch function: 1-Way/2-Way
- Material: Polycarbonate (PC) and PA66 housing
- Connections: Screw terminals compatible with 1.5 mm² stranded, flexible, and rigid wires
- Wire stripping length: 10 mm
- Electrical durability: 20,000 cycles
- Dielectric strength: 20,000 V
- Number of terminals: 4
- Load types supported: Lighting, fluorescent lighting, inductive loads
- Local signalling: Warm white LED
- Current consumption: 60 mW
- Dimensions (H x L x W): 23mm x 32mm x 23mm
- Weight: 0.016 kg
Key Features
- Slim, sleek, and clean design for modern electrical accessories
- 1-Way/2-Way switch function with LED local signalling
- Rated current of 10AX with 250V AC, 50Hz operational voltage
- Durable polycarbonate (PC) and PA66 switch housing
- Screw terminal connections with Philips No 2 and square drive No 1 screw heads
- Electrical durability of 20,000 cycles
- Includes switch mechanism and LED module
- Warm white LED signalling colour
- Optional locator and indicator function
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper operation.
Applications
- Lighting control in residential and commercial buildings
- Suitable for lighting, fluorescent lighting, and inductive loads
Standards & Compliance
- Complies with AS/NZS 60669 for switches and control devices
Environmental Benefits
- LED indicator reduces energy consumption compared to traditional bulbs
- Durable materials and long electrical durability reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Switch Mechanism 1-Way/2-Way 250V 10AX LED Slim Design is available now for immediate purchase. Ideal for modern residential and commercial lighting control applications.
