Switch Mechanism 10A 2-Way 1P SPDT Vertical White HPM

BRAND: Hpm
SKU: 770KLIOWECK
$139.40 List price: $173.70
1 EA ($139.40 per EA)
+ −
30 Days Return Electricians Unlock Trade Access

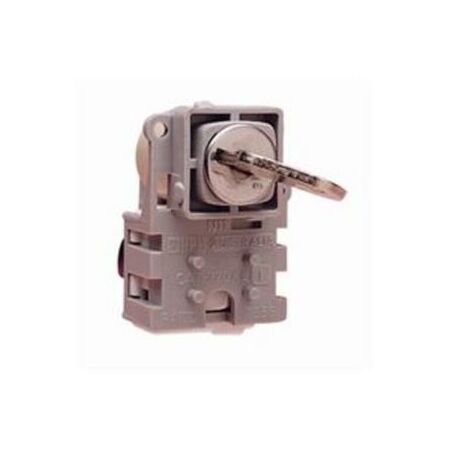

HPM switch mechanism features 10A, 2-way, 1P, SPDT. Suited for AU trade and residential electrical installations.
Technical Specifications
  • Current Rating: 10A
  • Switch Type: Keylock switch mechanism
  • Switch Configuration: Single pole double throw (SPDT)
  • Compatibility: Flexible 770 module for HPM Excel, Linea, Architectural Metal, and Standard ranges
  • Switch Operation: 1-2 way & loop
  • Key Removal: Key removable in ON (I) or OFF (O) position, common key only
  • Cleaning: Use damp cloth only; no solvents or cleaning agents
  • Dimensions (H x L x W): 80mm x 40mm x 50mm
  • Weight: 0.15 kg
Key Features
  • 10A keylock switch mechanism for secure on/off control
  • Flexible 770 module compatible with HPM Excel, Linea, Architectural Metal, and Standard ranges
  • Supports 1-2 way & loop switching
  • Single pole double throw (SPDT) configuration
  • Key removable in ON (I) or OFF (O) position with common key only
  • Easy cleaning with a damp cloth; avoid solvents and cleaning agents
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper operation.
Applications
  • Hospitality: Hotels, motels, serviced apartments
  • Commercial: Offices, retail spaces requiring secure switch control
  • Residential: Areas requiring controlled access to electrical switches
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Supports energy management by enabling controlled power switching
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The HPM Standard 10A Hospitality Vertical Removable On/Off Common Key Keylock Switch White is available now for immediate purchase. Ideal for hospitality and commercial environments requiring secure switch control.
