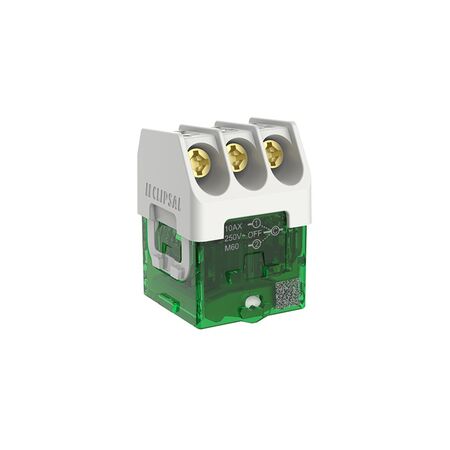

Switch Mechanism 3 Position Toggle | 250V 10A | Vivid White
Switch mechanism with 3 position toggle and 250V 10A rating—ideal for lighting and sensor applications. Built for modern environments, with a sleek design and vivid white finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switch Mechanism 3 Position Toggle | 250V 10A | Vivid White
SKU: 49M-VW
Alternatively Known As: 3 Position Toggle Switch Mechanism, Clipsal 3 Position Switch, 3 Position Rocker Switch, 3 Position Toggle Switch 10A, Clipsal Switch Mechanism Vivid White
Technical Specifications
- Rated operational voltage: 250V AC, 50Hz
- Rated current: 10AX
- Switch function: ON-OFF-ON
- Number of terminals: 4
- Material: Polycarbonate (PC), PA66, ABS
- Electrical durability: 20,000 cycles
- Dielectric strength: 20,000 V
- Connection type: Screw terminals
- Wire stripping length: 10 mm
- Clamping connection capacity: 1.5 mm² stranded, flexible, rigid
- Surface finish: Matt
- Colour: Vivid White
- Device mounting and fixing mode: Locking bar
- Dimensions (H x L x W): 23mm x n/a mm x 23mm
- Weight: 0.016 kg
Key Features
- 3 position toggle switch with ON-OFF-ON function
- Rated current 10AX, 250V AC, 50Hz
- Rocker actuator design
- Screw terminal connections with Philips No 2 and square drive No 1 screw heads
- Clamping connection capacity for 1.5 mm² stranded, flexible, and rigid wires
- Electrical durability of 20,000 cycles
- Dielectric strength of 20,000 V
- Matt vivid white finish
- Locking bar fixing mode
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Lighting control in residential and commercial buildings
- Switching for fluorescent lighting and inductive loads
- Use with lighting sensors
Standards & Compliance
- Complies with AS/NZS 60669 for electrical switches
Environmental Benefits
- Durable polycarbonate and ABS materials extend product life and reduce waste
- Energy efficient switching reduces unnecessary power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Switch Mechanism 3 Position Toggle in Vivid White is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
