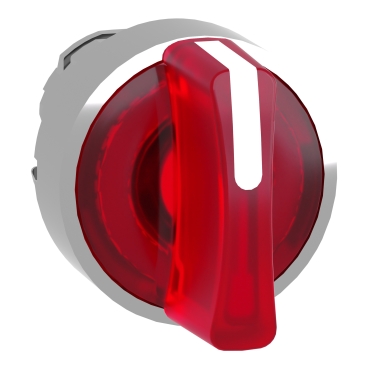

Switch Selector Spring Return | IP66 Rated | 600V AC | Ergonomic Handle | @Pack of 1 | by Clipsal
The Switch Selector Spring Return is designed for reliable momentary operation in industrial environments. With an IP66 rating and a robust construction, it’s perfect for automation systems and control panels. Easy to install in standard 22mm cutouts, this switch features an ergonomic handle for dependable switching, ensuring compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switch Selector Spring Return | IP66 Rated | 600V AC | Ergonomic Handle | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BK1543
Alternatively Known As: Selector Switch Spring Return, Momentary Selector Switch, Industrial Selector Switch, Clipsal SCHZB4BK1543
Technical Specifications
- Type: Spring return selector switch
- Mounting diameter: 22mm
- Contact configuration: 1NO/1NC (varies by assembly)
- Material: High-impact plastic and metal
- Rated voltage: 600V AC max
- Rated current: 10A
- Operating temperature: -25°C to +70°C
- Ingress protection: IP66 (front panel)
- Dimensions (H x L x W): 60mm x 30mm x 30mm
- Weight: 0.15 kg
Key Features
- Spring return mechanism for momentary operation
- Robust construction for industrial environments
- Easy installation in standard 22mm panel cutouts
- Ergonomic selector handle for reliable switching
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation
- Automation systems
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Reliable operation minimizes downtime and energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Switch Selector Spring Return SCHZB4BK1543 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation.
