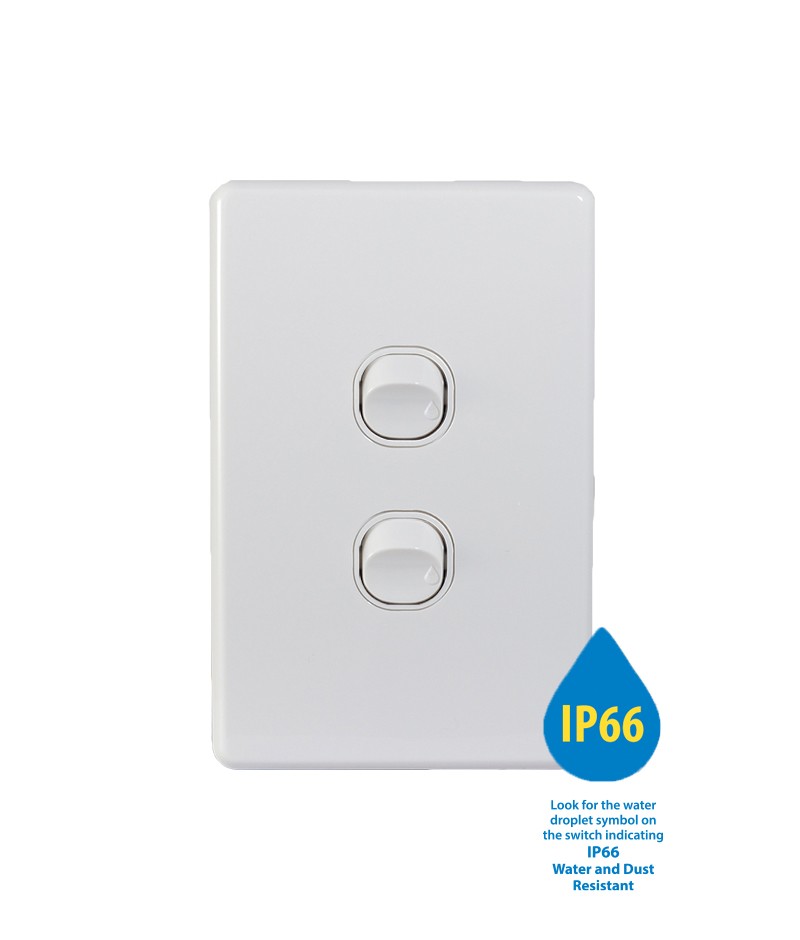

Switch Vertical 2 Gang 10AX 250V IP66 Puma White Trader
Trader switch features vertical 2 gang layout, 10AX 250V rating and IP66 weatherproof build. Ideal for outdoor and washdown switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Vertical 2‑Gang Weatherproof Switch
Technical Specifications
- Current Rating: 10 AX
- Voltage Rating: 250 V a.c.
- Ingress Protection: IP66 (from front only)
- Motor Rating: M100
- Mounting Centres: 84 mm standard wallplate
- Material: Polycarbonate
- Dimensions (H x L x W): 117mm x 26mm x 76mm
- Weight: 0.122 kg
Key Features
- Weather‑protected design achieving IP66 on smooth, flat, non‑porous surfaces
- Compact vertical 2‑gang layout
- Clip‑on front cover/surround for easy assembly
- Includes rear gasket with silicone washer to maintain seal
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000.
Applications
- Outdoor and wet‑area switching (e.g. external lighting, wash‑down areas)
- Residential and commercial installations requiring dust‑ and water‑resistant switches
Standards & Compliance
- Installed in accordance with AS/NZS 3000
Warranty Information
10 year manufacturer’s warranty (Trader Puma IP66 range).
Available Now
Available through authorised Australian electrical distributors.
