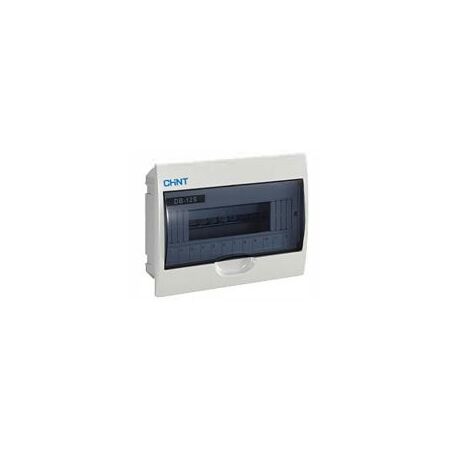

Switchboard 12 Module Flush Mount 100A IP30 DB2 White Chint
Chint DB2 12 module flush mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB2 12-Way Flush-Mount Switchboard, 12-Module Consumer Unit, Residential Distribution Board
Technical Specifications
- Model: DB2-12F
- Commercial Code: 808049
- Mounting Type: Flush-mounted
- Circuit Capacity: 12 modules
- Rated Current: Up to 100A
- Rated Voltage: 230V AC
- Frequency: 50/60Hz
- Protection Degree: IP30
- Construction: ABS/PC body with PC door
- Terminals: Internal neutral and earth terminal blocks
- Standard: IEC/EN 60670-24
- Dimensions (H x L x W): 222mm x 88mm x 280mm
- Weight: 0.9 kg
Key Features
- Provides space for 12 modular protection or control devices
- Flush-mount design for recessed residential switchboard installations
- Internal neutral and earth terminal blocks included
- Suitable for compatible 9mm modular components
- Plastic-metal enclosure construction with a protective front door
- IP30 protection against solid objects larger than 2.5mm
- White finish for residential and light commercial applications
Professional Installation Requirements
- Installation and connection to mains electrical circuits must be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Confirm the complete installed assembly is suitable for the intended fault level and application.
Applications
- Residential switchboards
- Domestic power distribution
- Small commercial distribution boards
- Recessed indoor electrical installations
- Housing MCBs, RCBOs and other compatible modular devices
Standards & Compliance
- AS/NZS 3000:2018 applies to selection, installation and verification of the completed electrical installation
Environmental Benefits
- Durable enclosure construction can support a long service life and reduce replacement waste
- Steel and metal components are recyclable through appropriate recycling streams
- Modular design allows individual protective devices to be replaced without replacing the complete enclosure
Warranty Information
CHINT’s general policy for other low-voltage apparatus provides 27 months from the date of manufacture when products are sold through authorised channels; contract and local distributor terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
