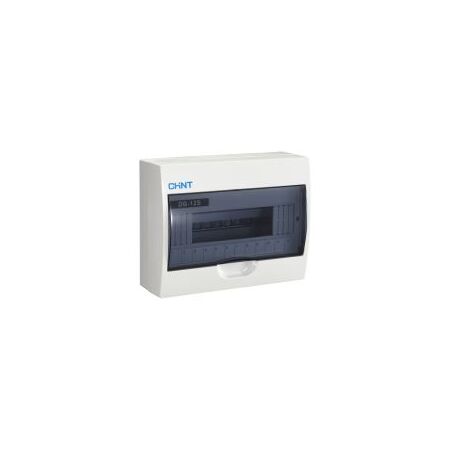

Switchboard 12 Module Surface Mount 100A IP30 DB2 White Chint
Chint DB2 12 module surface mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB2-12S Distribution Board, 12-Way Surface-Mount Switchboard, Residential Power Distribution Box
Technical Specifications
- Product Type: Surface-mount power distribution box
- Module Capacity: 12 modules
- Rated Current: Up to 100A
- Rated Voltage: 230V AC
- Rated Frequency: 50/60Hz
- Protection Rating: IP30
- Terminal Blocks: Neutral and protective earth terminals
- Enclosure Colour: White
- Applicable Product Standard: IEC/EN 60670-24
- Installation Type: Surface mounted
- Dimensions (H x L x W): 199mm x 256mm x 95mm
- Weight: 0.9 kg
Key Features
- Accommodates 12 modular circuit protection devices
- Surface-mount design for residential and light commercial installations
- IP30 enclosure protection against solid objects larger than 2.5mm
- Includes neutral and protective earth terminal blocks
- Suitable for 230V AC distribution systems
- White enclosure with transparent protective cover
- Designed for installation by qualified electrical personnel
Professional Installation Requirements
- Installation, wiring and connection to mains electrical circuits must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements.
Applications
- Residential distribution boards
- Small commercial distribution boards
- Sub-distribution boards
- Renovation and retrofit electrical installations
- Housing miniature circuit breakers, RCBOs and other compatible modular protective devices
Standards & Compliance
- AS/NZS 3000:2018 – requirements for electrical installation, wiring and switchboard installation apply when installed in Australia
- AS/NZS 61439.3:2016 – relevant to completed low-voltage distribution board assemblies intended for operation by ordinary persons, where applicable
Environmental Benefits
- Modular construction allows individual protective devices to be replaced without replacing the complete enclosure
- Durable enclosure construction can support a long service life and reduce replacement waste
- Plastic enclosure components should be separated and directed to appropriate recycling streams where local facilities accept them
Warranty Information
Covered by CHINT warranty terms for low-voltage electrical products; warranty period and claim conditions should be confirmed with the authorised distributor at the time of purchase.
Available Now
Available through authorised CHINT distributors in Australia.
