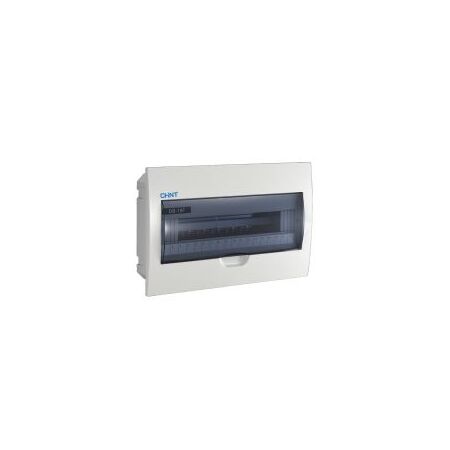

Switchboard 18 Module Flush Mount 100A IP30 DB2 White Chint
Chint DB2 18 module flush mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB2-18F Consumer Unit, 18-Way Flush-Mount Switchboard, Residential Distribution Board
Technical Specifications
- Product Series: DB2
- Mounting Type: Flush mounted
- Module Capacity: 18 modules
- Rated Current: 100A
- Rated Voltage: 230V AC
- Ingress Protection: IP30
- Terminal Blocks: Neutral and earth terminals included
- Material: ABS/PC plastic-metal enclosure with PC door
- Colour: White
- Applicable Product Standard: IEC/EN 60670-24
- Dimensions (H x L x W): 253mm x 400mm x 98mm
- Weight: 1.8 kg
Key Features
- Flush-mount design for residential distribution boards
- Accommodates up to 18 modular DIN-rail devices
- 100A rated distribution enclosure for 230V installations
- IP30 protection against access to hazardous parts and solid objects
- Includes dedicated neutral and earth terminal blocks
- White enclosure with a non-transparent front door
- Suitable for 9mm modular components
- Compact plastic-metal construction for fixed indoor installations
Professional Installation Requirements
- Installation, wiring and commissioning must be carried out by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements.
Applications
- Residential switchboards
- Indoor final distribution boards
- Apartment and townhouse electrical distribution
- Small commercial distribution installations
- Housing DIN-rail circuit breakers, RCBOs and related protective devices
Standards & Compliance
- AS/NZS 3000 for electrical installation and wiring requirements
- AS/NZS 61439.3 for low-voltage distribution board assemblies where applicable
Environmental Benefits
- Plastic and metal enclosure components may be separated for appropriate material recovery at end of service life
- Durable enclosure construction can reduce replacement frequency and associated material waste
- Supports organised and maintainable electrical distribution, helping extend the service life of installed protective devices
Warranty Information
CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels, subject to the applicable warranty terms.
Available Now
Available through authorised CHINT distributors in Australia.
