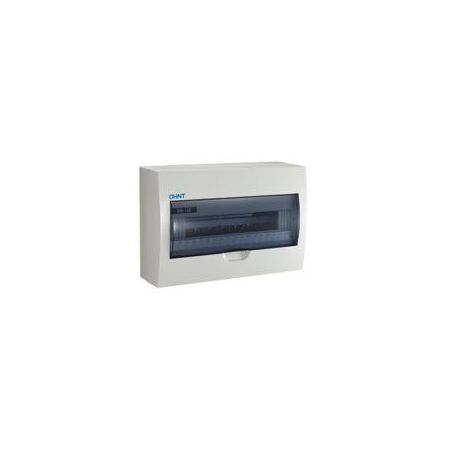

Switchboard 18 Module Surface Mount 100A IP30 DB2 White Chint
Chint DB2 18 module surface mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB2-18S Distribution Box, 18-Way Surface Mount Switchboard, Residential Distribution Board
Technical Specifications
- Rated Current: 100 A
- Rated Voltage: 230 V AC
- Rated Frequency: 50/60 Hz
- Module Capacity: 18 modules
- Protection Rating: IP30
- Mounting Type: Surface mount
- Terminal Provision: Neutral and protective earth terminal blocks
- Construction: ABS/PC enclosure with PC door
- Colour: White
- Enclosure Standard: IEC/EN 60670-24
- Dimensions (H x L x W): 361mm x 220mm x 98mm
- Weight: 1.2 kg
Key Features
- Accommodates up to 18 modular circuit protection devices
- Surface-mounted enclosure for residential and similar fixed electrical installations
- Includes neutral and earth terminal blocks
- IP30 protection against solid objects larger than 2.5 mm
- Suitable for 100 A, 230 V distribution applications
- Designed for use with modular miniature circuit breakers and related protective devices
- White enclosure with accessible front door
Professional Installation Requirements
- Installation, device selection, wiring and testing must be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical regulations, including AS/NZS 3000.
Applications
- Residential switchboards
- Small domestic distribution boards
- Apartment and townhouse electrical distribution
- Light commercial fixed electrical installations
- Replacement or extension of existing modular distribution boards
Standards & Compliance
- AS/NZS 3000 for electrical installation and switchboard wiring requirements
- IEC/EN 60670-24 for enclosures housing protective devices
- IEC 61439-3 declaration applicable to the CHINT DB2 distribution box range
Environmental Benefits
- Metal components can be recovered and recycled at end of service life
- ABS/PC enclosure materials may be recyclable through suitable plastics recovery streams
- RoHS compliance helps restrict hazardous substances in electrical equipment
- Durable enclosure construction can reduce replacement frequency and material waste
Warranty Information
CHINT's general warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable contract and warranty conditions.
Available Now
Available through authorised CHINT distributors in Australia.
