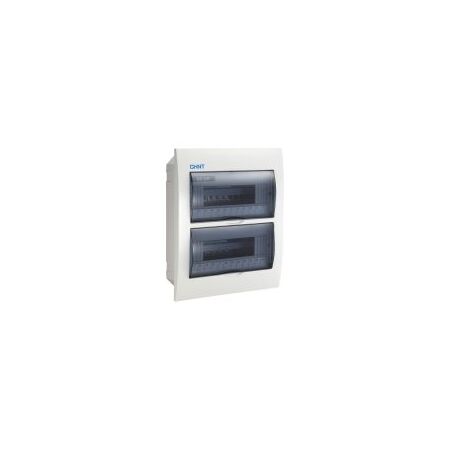

Switchboard 24 Module Flush Mount 100A IP30 DB2 White Chint
Chint DB2 24 module flush mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB-24F, 24-Way Flush-Mount Distribution Box, Residential Switchboard Enclosure
Technical Specifications
- Series: DB2
- Module Capacity: 24 modules
- Mounting Type: Flush mount
- Rated Current: Up to 100A
- Rated Voltage: 230V AC
- Frequency: 50/60Hz
- Ingress Protection: IP30
- Terminal Blocks: Neutral and earth terminals included
- Enclosure Construction: ABS/PC body with PC door
- Door Colour: White
- Applicable Enclosure Standard: IEC/EN 60670-24
- Dimensions (H x L x W): 380mm x 90mm x 280mm
- Weight: 1.8 kg
Key Features
- Flush-mount design for recessed residential installations
- Accommodates up to 24 modular devices
- Suitable for compatible 9mm modular components
- Includes internal neutral and earth terminal blocks
- IP30 protection against access to hazardous parts and objects larger than 2.5mm
- White enclosure suitable for domestic switchboard applications
- Supports customised circuit combinations within the available module capacity
Professional Installation Requirements
- Installation and connection must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical requirements. The completed distribution-board assembly must be correctly selected, rated and verified before energisation.
Applications
- Residential electrical distribution boards
- Domestic lighting and power circuit distribution
- Recessed switchboard installations
- Small commercial and light-duty electrical distribution applications
Standards & Compliance
- IEC/EN 60670-24 for boxes and enclosures for electrical accessories for household and similar fixed electrical installations
- AS/NZS 61439.3:2016 is applicable to distribution boards intended to be operated by ordinary persons when the completed assembly meets the standard's scope
- AS/NZS 3000:2018 applies to selection, installation and connection within Australian electrical installations
Environmental Benefits
- Durable ABS/PC enclosure construction supports extended service life and can reduce replacement waste
- Plastic components may be recoverable through appropriate electrical and plastics recycling streams at end of life
- Enables organised circuit distribution and protection, supporting efficient electrical system operation
Warranty Information
CHINT's general policy for other low-voltage apparatus provides a 27-month warranty from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels, subject to contract terms and exclusions.
Available Now
Available through authorised CHINT distributors in Australia.
