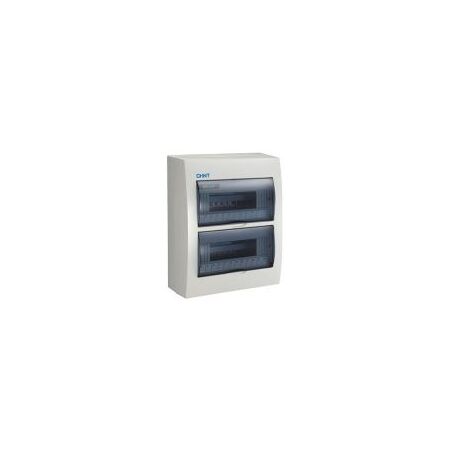

Switchboard 24 Module Surface Mount 100A IP30 DB2 White Chint
Chint DB2 24 module surface mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB2 24 Module Switchboard, CHINT DB2-24S Distribution Box, 24-Way Surface-Mount Consumer Unit
Technical Specifications
- Product Type: Surface-mount distribution board
- Module Capacity: 24 modules
- Rated Current: Up to 100A
- Rated Voltage: 230V AC
- Rated Frequency: 50/60Hz
- Protection Rating: IP30
- Terminal Blocks: Internal neutral and protective earth terminals
- Enclosure Material: ABS/PC body with polycarbonate door
- Modular Compatibility: 9mm modular components and compatible MCBs
- Compliance Basis: IEC/EN 60670-24 and IEC 61439-3
- Dimensions (H x L x W): 325mm x 270mm x 100mm
- Weight: 1 kg
Key Features
- 24-module capacity for residential distribution circuits
- Surface-mount enclosure for wall installation
- White enclosure with protective front door
- Internal neutral and earth terminal blocks included
- IP30 protection against solid objects larger than 2.5mm
- Suitable for compatible CHINT modular circuit protection devices
- Compact enclosure measuring 270mm wide by 325mm high by 100mm deep
Professional Installation Requirements
- Installation, wiring and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, applicable AS/NZS 61439 requirements and local electrical regulations. The enclosure must be installed indoors or in a suitable protected location consistent with its IP30 rating.
Applications
- Residential switchboards
- Domestic final distribution boards
- Apartment and townhouse electrical distribution
- Small commercial distribution panels
- Replacement or expansion of compatible modular switchboard enclosures
Standards & Compliance
- AS/NZS 61439.3: Applicable standard for low-voltage distribution boards intended to be operated by ordinary persons; final assembly compliance and verification must be confirmed for the installation
- AS/NZS 3000: Electrical installation and wiring requirements apply during installation
Environmental Benefits
- RoHS 2.0 declaration supports restriction of specified hazardous substances in the electrical product
- Durable ABS/PC enclosure materials support extended service life and reduced replacement waste
- Plastic components may be recyclable where suitable local recycling facilities accept ABS and polycarbonate
- Modular construction allows individual protective devices to be replaced without discarding the complete enclosure
Warranty Information
CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to contract terms and exclusions for incorrect installation, misuse, unauthorised modification or repair.
Available Now
Available through authorised CHINT distributors in Australia.
