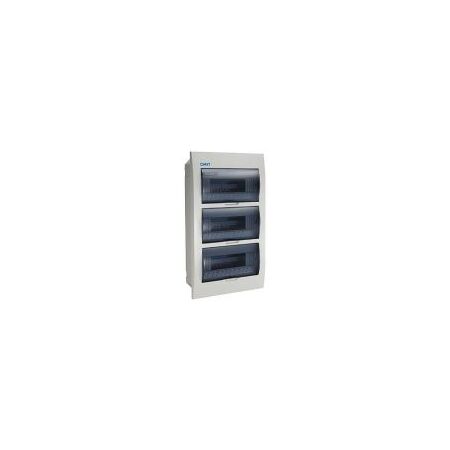

Switchboard 36 Module Flush Mount 100A IP30 DB2 White Chint
Chint DB2 36 module flush mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 36-Module Flush-Mount Switchboard, Residential Distribution Board, Consumer Unit, Electrical Distribution Box
Technical Specifications
- Product Series: DB2
- Model: DB2-36F
- Module Capacity: 36 modules
- Rated Current: Up to 100A
- Rated Voltage: 230V AC
- Rated Frequency: 50/60Hz
- Protection Rating: IP30
- Terminal Blocks: Neutral and protective earth terminals included
- Enclosure Construction: ABS/PC body with PC door and metal structure
- Door Colour: White
- Compatible Devices: 9mm modular electrical components and miniature circuit breakers
- Standard: IEC/EN 60670-24
- Dimensions (H x L x W): 481mm x 299mm x 96mm
- Weight: 4 kg
Key Features
- 36-module capacity arranged across three rows
- Flush-mount enclosure for recessed residential installations
- Internal neutral and protective earth terminal blocks
- IP30 protection against access to hazardous parts and solid objects greater than 2.5mm
- White enclosure with enclosed modular device compartments
- Suitable for custom circuit combinations using compatible modular protection devices
- Designed for residential power distribution boards
Professional Installation Requirements
- Installation and connection to mains electrical wiring must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Confirm the complete assembled board, protective devices and fault-current requirements before energising.
Applications
- Residential switchboards
- Apartment and townhouse distribution boards
- Domestic lighting and power circuit distribution
- Renovation and replacement switchboard installations
- Indoor low-voltage final distribution systems
Standards & Compliance
- IEC/EN 60670-24, as specified for the CHINT DB2 enclosure series
- AS/NZS 60670.1:2021 is the applicable Australian/New Zealand general enclosure standard for household and similar fixed electrical installations
- Installation and wiring should comply with AS/NZS 3000
Environmental Benefits
- Plastic and metal enclosure components can be separated for appropriate recycling at end of service life
- Durable enclosure construction can reduce replacement frequency and associated material waste
- Supports organised electrical distribution and protection in residential systems, helping maintain safe and efficient circuit operation
Warranty Information
CHINT's published general policy provides a 27-month warranty from the date of manufacture for other low-voltage apparatus, subject to authorised sales channels, contract terms and exclusions for improper installation, misuse or unauthorised modification.
Available Now
Available through authorised CHINT distributors in Australia.
