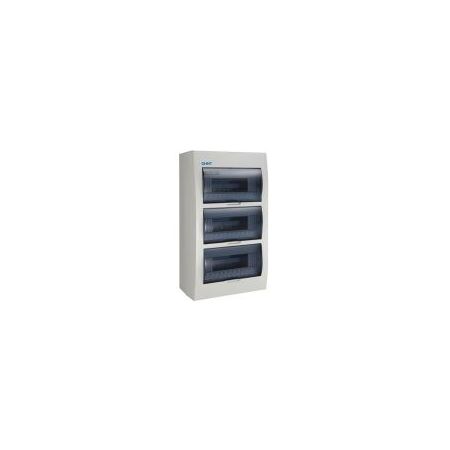

Switchboard 36 Module Surface Mount 100A IP30 DB2 Chint
Chint DB2 36 module surface mount switchboard features 100A 230V, IP30 and neutral and earth terminal blocks to IEC/EN 60670-24. Ideal for residential boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT DB2-36S Distribution Box, 36-Way Surface-Mount Switchboard, Residential Distribution Board
Technical Specifications
- Product Series: DB2
- Mounting Type: Surface mounted
- Module Capacity: 36 modules
- Electrical Rating: Up to 100A, 230V AC, 50/60Hz
- Protection Rating: IP30
- Terminal Blocks: Neutral and protective earth terminals included
- Enclosure Construction: ABS/PC body with PC door and metal structure
- Modular Compatibility: 9 mm modular components and compatible MCBs
- Standard Referenced by Manufacturer: IEC/EN 60670-24
- Allowable Temperature Rise: 40 K
- Dimensions (H x L x W): 459mm x 270mm x 100mm
- Weight: 1.8 kg
Key Features
- Provides 36-module DIN rail capacity for residential distribution circuits
- Surface-mount design for straightforward wall installation
- Includes internal neutral and protective earth terminal blocks
- IP30 enclosure helps protect against contact with hazardous parts and solid objects larger than 2.5 mm
- Plastic and metal construction with a hinged transparent or non-transparent door option
- Suitable for assembling customised circuit combinations using compatible modular protection devices
Professional Installation Requirements
- Installation, wiring and commissioning must be performed by a licensed electrician in accordance with the manufacturer's instructions, applicable electrical regulations and AS/NZS 3000. The enclosure must be populated only with compatible devices and correctly rated conductors and protective equipment.
Applications
- Residential switchboards
- Apartment and townhouse distribution boards
- Small commercial distribution panels
- Final distribution of lighting, socket-outlet and dedicated appliance circuits
- Replacement or expansion of compatible low-voltage distribution enclosures
Standards & Compliance
- AS/NZS 3000 for installation of low-voltage electrical equipment and switchboards
- AS/NZS 61439.3 for distribution boards intended to be operated by ordinary persons, where the completed assembly falls within its scope
Environmental Benefits
- ABS, polycarbonate and metal components can be separated for recycling at end of service life where local recycling facilities accept them
- Durable enclosure construction can extend service life and reduce replacement waste
- Supports organised, serviceable electrical distribution, allowing individual protective devices to be maintained or replaced rather than replacing the complete enclosure
Warranty Information
CHINT warranty coverage is subject to the applicable sales contract and regional terms. Quality-related repair or replacement is generally provided within the agreed warranty period, subject to correct installation, use and authorised servicing.
Available Now
Available through authorised CHINT distributors in Australia.
