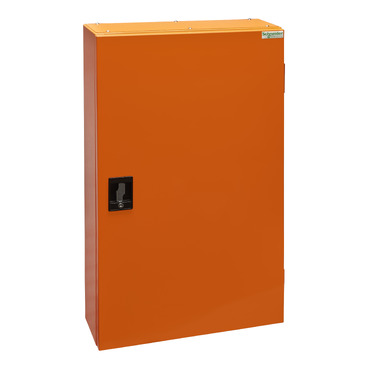

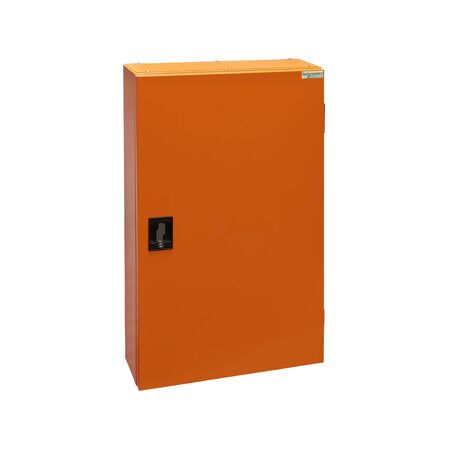

Switchboard 36P C60 | IP42 Rated | 250A Maximum Current | Orange Powder-Coated | @Pack of 1 | by Clipsal
The Switchboard 36P C60 is designed for robust electrical distribution, featuring a 250A maximum current rating and IP42 protection against solid objects and dripping water. Ideal for commercial and industrial applications, this switchboard is built with durable steel and a vibrant orange powder-coated finish, ensuring safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switchboard 36P C60 | IP42 Rated | 250A Maximum Current | Orange Powder-Coated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMB236D32X15
Alternatively Known As: Clipsal 36 Pole Switchboard, 250A Distribution Board, C60 Switchboard, Industrial Switchboard 36P, SCHMB236D32X15
Technical Specifications
- Number of Poles: 36
- Ingress Protection: IP42
- Maximum Current: 250A
- Material: Steel, powder-coated orange
- Compatible Devices: C60 circuit breakers and accessories
- Door: Lockable, hinged
- Cable Entry: Removable gland plates
- Mounting: Surface mount
- Dimensions (H x L x W): 800mm x 200mm x 600mm
- Weight: 18 kg
Key Features
- 36 pole capacity for circuit protection devices
- IP42 rated for protection against solid objects and dripping water
- 250A maximum current rating
- Robust steel construction with orange powder-coated finish
- Suitable for C60 circuit breakers and accessories
- Lockable door for enhanced safety
- Removable gland plates for easy cable entry
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution
- Large residential complexes
- Warehouses and factories
- Switchroom installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Powder-coated finish is low-VOC and environmentally safer than traditional paints
- Supports safe and efficient electrical distribution, reducing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Switchboard 36P C60 IP42 250A Orange is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
