Switchboard Enclosure Type 3 | 2 Row 36 Ways | Flush Mounted by Clipsal
Switchboard enclosure with Type 3, 2 row, 36 ways design—ideal for small commercial and residential distribution. Built for safety and durability, with flush mounted installation and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

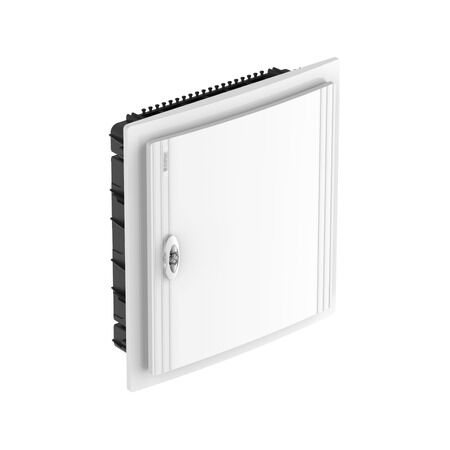

Product Name/Title: MAX9, Switchboard Enclosure, Type 3, 2 Row, 36 Ways, Flush Mounted
Brand: Clipsal
SKU: MX9E3218F
Alternatively Known As: MAX9 Switchboard, Clipsal Enclosure, Circuit Protection Enclosure
Technical Specifications
- Rated insulation voltage: 500 V.
- Total number of 18 mm modules: 36.
- Number of horizontal rows: 2.
- Enclosure material: Plastic housing and front face.
- Fire resistance: 650 °C.
- Dimensions (H x L x W): 510mm x 128mm x 486mm
- Weight: 4.3 kg
Key Features
- Type 3, 2 Row, 36 Ways, Flush Mounted design.
- Includes earthing bar, neutral bar, circuit identification label, and blanking plate.
- Rated operational voltage of 240/415 V AC and rated current of 100 A.
- IP40 degree of protection and IK09 impact protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution applications.
Standards & Compliance
- Complies with AS/NZS 61439-3 and AS/NZS 3000 standards.
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
7-year warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Switchboard Enclosure is available now for immediate purchase. Ideal for small commercial and residential distribution applications.
