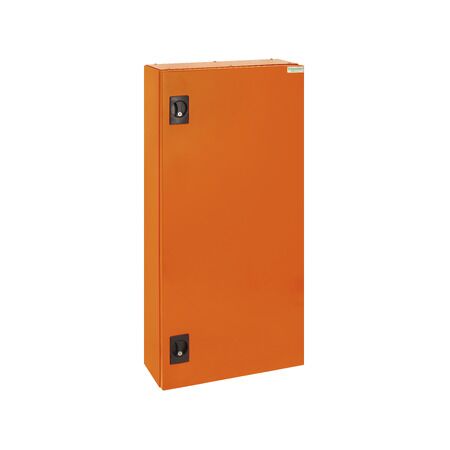

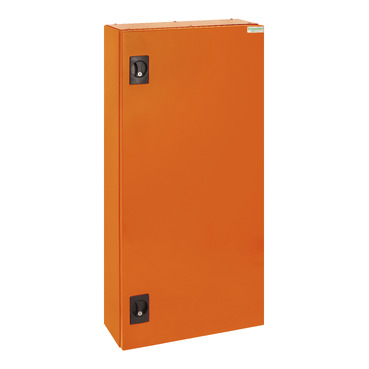

Switchboard MD 60P C60 | IP56 Rated | 250A Capacity | Surface Mount | @Pack of 1 | by Clipsal
The Switchboard MD 60P C60 is designed for robust electrical distribution, featuring a 250A capacity and IP56 rating for superior dust and water protection. Ideal for commercial and industrial applications, this switchboard accommodates up to 60 poles, ensuring flexible circuit management. Built with durable powder-coated steel and a lockable door, it’s perfect for outdoor and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Switchboard MD 60P C60 | IP56 Rated | 250A Capacity | Surface Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMD260E32X15
Alternatively Known As: Clipsal MD Switchboard, 60 Pole Main Distribution Board, 250A IP56 Switchboard, Clipsal SCHMD260E32X15, Industrial Switchboard 250A
Technical Specifications
- Rated Current: 250A
- Number of Poles: 60
- Ingress Protection: IP56 (dust and strong water jets)
- Material: Powder-coated steel
- Mounting: Surface mount
- Door: Lockable, hinged
- Voltage: 415V AC
- Compliance: AS/NZS 3000, AS/NZS 61439
- Dimensions (H x L x W): 1200mm x 300mm x 800mm
- Weight: 65 kg
Key Features
- IP56 rated for superior dust and water protection
- 250A maximum current rating for heavy-duty applications
- Accommodates up to 60 poles for flexible circuit management
- Robust steel construction for durability
- Lockable door for enhanced security
- Surface mount design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution
- Main switchboard for large buildings
- Factories, warehouses, and plant rooms
- Outdoor and harsh environments requiring high ingress protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Weatherproof design minimizes risk of environmental contamination
- Supports safe and efficient power distribution, reducing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial electrical distribution applications requiring high capacity and weatherproof protection.
