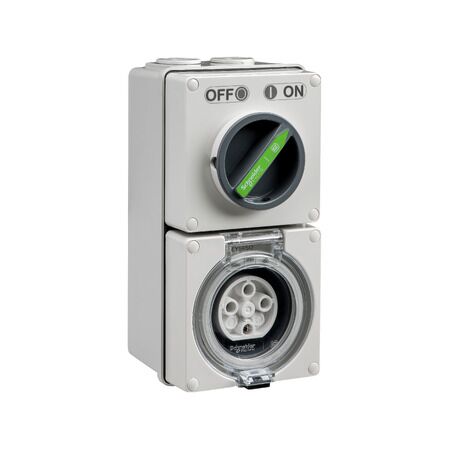

Switched Socket 4 Pin 20A 500V | Surface Mounted | IP66 Rated by Clipsal
Switched socket with 4 pin design, 20A current, and 500V voltage—ideal for industrial and small commercial applications. Built for durability, with surface mounting and IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Switched Socket, 4 Pin, 20A, 500V
Brand: Clipsal
SKU: EY56C420
Alternatively Known As: Easy56 Switched Socket, Clipsal 4 Pin Socket, Clipsal 20A Socket
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V
- Control type: Rotary knob
- Mounting mode: Surface mounted
- Protection type: Without protection
- Connections: Screw terminals
- Material: Polycarbonate housing
- Pin number: 4 pins
- Poles description: 3P + E
- Network type: AC
- Network frequency: 50Hz
- Cable cross section: 1...16 mm²
- Cable entry number: 2 x M25, 1 x M32
- Dimensions (H x L x W): 203mm x 101mm x 101mm
- Weight: 0.82 kg
Key Features
- 4 pin design with a rated current of 20A and operational voltage of 500V.
- Surface mounted with a rotary knob control type.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Utility and small commercial applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled cardboard packaging.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Switched Socket 4 Pin 20A 500V is available now for immediate purchase. Ideal for industrial and small commercial applications.
