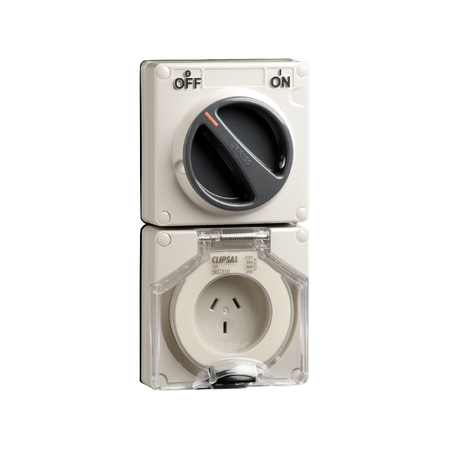

Switched Socket IP66 3 PIN 10A | Surface Mount | Grey by Clipsal
Switched socket with IP66 rating and 10A capacity—ideal for industrial and small commercial applications. Built for surface mounting, with robust polycarbonate construction for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface IP66 3 PIN 10A Grey
Brand: Clipsal
SKU: 56C310LE-GY
Alternatively Known As: Clipsal 56 Series Socket, IP66 Socket, 10A Switched Socket
Technical Specifications
- Number of poles: 3
- Number of power socket outlets: 1
- Protection type: without protection
- Connections - terminals: screw terminals for cables 1.5-6 mm²
- Ambient air temperature for operation: -25 to 75 °C
- Material: Polycarbonate cover, phosphor bronze pins
- Plug, socket category: low voltage
- Outlet standard deviation: Australian/New Zealand
- Dimensions (H x L x W): 198mm x 45mm x 101mm
- Weight: 0.404 kg
Key Features
- IP66 rated for protection against dust and water
- Designed for surface mounting
- Rated current of 10A and operational voltage of 250V AC
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Utility: Suitable for small commercial applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 standards.
Environmental Benefits
- Compliant with RoHS directives, reducing hazardous substances.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 56 Series Switched Socket Surface IP66 3 PIN 10A in Grey is available now for immediate purchase. Ideal for industrial and small commercial applications.
