Trade Discount 33%

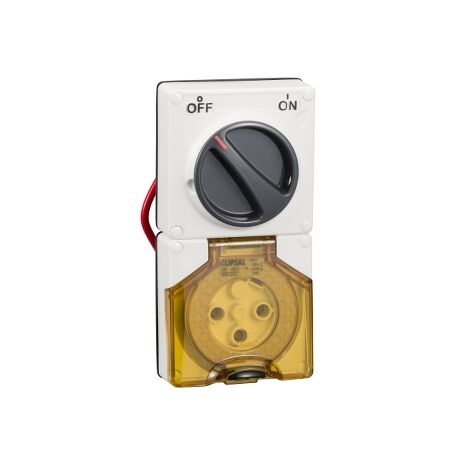

Switched Socket IP66 32A | Surface Mount | 3 Pin | Grey by Clipsal
Switched socket with IP66 rating and 32A capacity—ideal for industrial and commercial power solutions. Built for durability, with surface mount design and robust polycarbonate construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface IP66 3 PIN 32A Less Enclosure Grey
Brand: Clipsal
SKU: 56C332LE-GY
Alternatively Known As: Clipsal 56 Series Socket, IP66 Socket, 32A Switched Socket
Technical Specifications
- Number of poles: 3
- Number of power socket outlets: 1
- Protection type: Without protection
- Connections - terminals: Screw terminals for cables 6-16 mm²
- Ambient air temperature for operation: -25...75 °C
- Material: Polycarbonate cover, phosphor bronze pins
- Poles description: 1P + N + E
- Electrical connection: Industrial connector
- Dimensions (H x L x W): 198mm x 45mm x 101mm
- Weight: 0.64 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Rated current of 32A and operational voltage of 250V AC 50Hz.
- Surface mounting design for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications requiring robust power solutions
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Surface IP66 3 PIN 32A is available now for immediate purchase. Ideal for industrial and small commercial applications.
