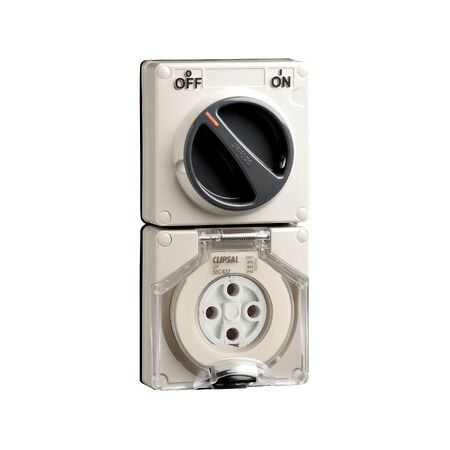

Switched Socket Surface IP66 4 PIN 32A | Less Enclosure | Grey by Clipsal
Switched socket with IP66 rating and 32A capacity—ideal for industrial and small commercial applications. Built for durability, with surface mounting design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface IP66 4 PIN 32A Less Enclosure Grey
Brand: Clipsal
SKU: 56C432LE-GY
Alternatively Known As: Clipsal 56 Series Socket, 32A Switched Socket, IP66 Socket Outlet
Technical Specifications
- Number of poles: 4
- Number of power socket outlets: 1
- Protection type: Without protection
- Connections - terminals: Screw terminals for cables 6-16 mm²
- Ambient air temperature for operation: -25 to 75 °C
- Material: Polycarbonate cover, phosphor bronze pins
- Standards: AS/NZS 3133, AS/NZS 3123
- Dimensions (H x L x W): 198mm x 45mm x 101mm
- Weight: 0.612 kg
Key Features
- IP66 rated for protection against dust and water
- Rated current of 32A and operational voltage of 500V AC
- Surface mounting design for easy installation
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
Standards & Compliance
- Complies with AS/NZS 60529 for IP66 rating.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket, Surface IP66 4 PIN 32A is available now for immediate purchase. Ideal for industrial and small commercial applications.
