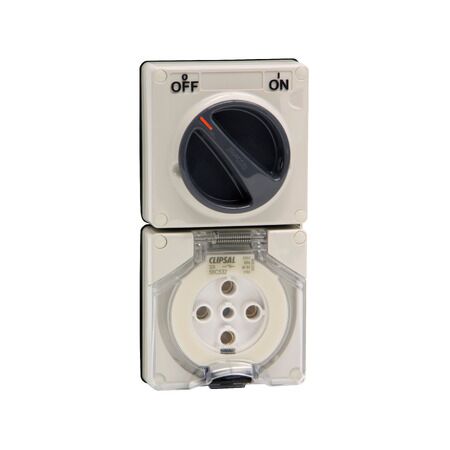

Switched Socket IP66 5 Pin 32A | Surface Mount | Grey by Clipsal
Switched socket with IP66 rating and 5 pin configuration—ideal for industrial and commercial power supply. Built for surface mounting, with 32A current capacity and robust grey design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface IP66 5 PIN 32A Less Enclosure Grey
Brand: Clipsal
SKU: 56C532LE-GY
Alternatively Known As: Clipsal 56 Series Socket, 5 Pin Socket, Industrial Power Socket
Technical Specifications
- Number of poles: 5
- Number of power socket outlets: 1
- Rated current: 32A
- Rated operational voltage: 500V AC 50Hz
- Protection type: Without protection
- Device mounting: Surface
- Connections - terminals: Screw terminals for cables 4-16 mm²
- Ambient air temperature for operation: -25 to 75 °C
- IP degree of protection: IP66 conforming to AS 60529
- Material: Polycarbonate cover, phosphor bronze pins
- Dimensions (H x L x W): 198mm x 45mm x 101mm
- Weight: 0.634 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Designed for surface mounting with screw terminals for secure connections.
- Rated current of 32A and operational voltage of 500V AC.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications requiring robust power solutions
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 56 Series Switched Socket, Surface IP66 5 PIN 32A is available now for immediate purchase. Ideal for industrial and small commercial applications.
