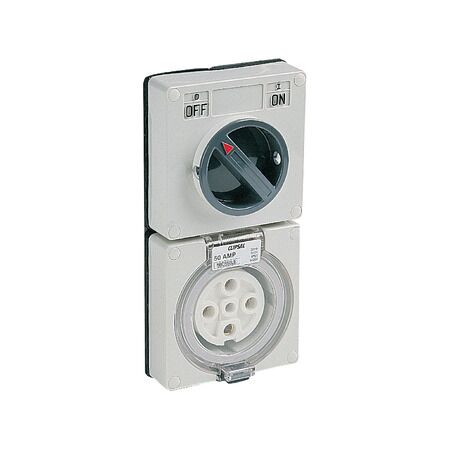

Switched Socket IP66 5 PIN 50A | Surface Mount | Woolworths Grey by Clipsal
Switched socket with IP66 rating and 5 PIN 50A capacity—ideal for industrial and commercial power supply. Built for robust performance, with surface mount design and Woolworths Grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface IP66 5 PIN 50A Less Enclosure - Woolworths Grey
Brand: Clipsal
SKU: 56C550LE-WW
Alternatively Known As: Clipsal 56 Series Socket, 50A Switched Socket, IP66 Socket Outlet
Technical Specifications
- Number of poles: 5
- Number of power socket outlets: 1
- Protection type: Without protection
- Device mounting: Surface
- Connections - terminals: Screw terminals for cables 10-16 mm²
- Ambient air temperature for operation: -25 to 75 °C
- Material: PC + PET for cover, phosphor bronze for contacts
- Plug, socket category: Low voltage
- Outlet standard deviation: Australian/New Zealand
- Poles description: 3P + N + E
- Electrical connection: Industrial connector
- Dimensions (H x L x W): 198mm x 45mm x 101mm
- Weight: 0.9 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Rated current of 50A and operational voltage of 500V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications requiring robust power solutions
Standards & Compliance
- Complies with AS/NZS 3123 and AS/NZS 3133 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per Clipsal's policy.
Available Now
The Clipsal 56 Series Switched Socket Surface IP66 5 PIN 50A is available now for immediate purchase. Ideal for industrial and commercial applications.
