Switched Socket Outlet 250V 10A | IP66 Rated | Surface Mount | Chemical Grey by Clipsal
Switched socket outlet with 250V, 10A capacity and IP66 rating—ideal for small commercial and utility applications. Built for durability, with surface mounting design and screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

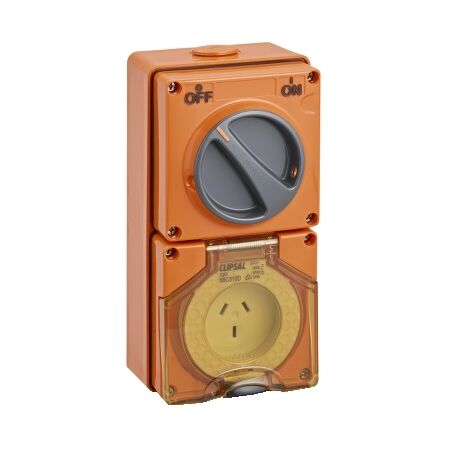

Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 250V, 10A, 3 Flat Pin Chemical Grey
Brand: Clipsal
SKU: 56C310-RO
Alternatively Known As: Clipsal Switched Socket, 56 Series Socket Outlet, 10A Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Number of poles: 3
- Number of power socket outlets: 1
- Protection type: without protection
- Material: ABS housing, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 83mm x 101mm
- Weight: 0.72 kg
Key Features
- IP66 rated for protection against dust and water
- Surface mounting design
- Screw terminal connections for cables 1.5-6 mm²
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Small commercial and utility industry applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 standards.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for small commercial and utility applications.
